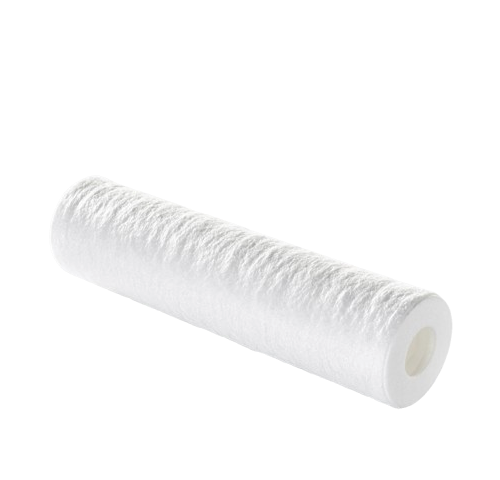

Absolute depth filter cartridge FKT-A
The FKT-A filter cartridges consist of 100% pure polypropylene without
binding agents and have a polypropylene supporting core.
Applications
Water for dialysis, edible oil, food, beverages, pharmaceuticals, galvanic baths, semiconductor production, chemicals, petrochemicals, paints, inks and generally as a pre-filter to protect submicron absolute filters. As absolute filter cartridges, the filter cartridges have a filtration efficiency of > 99.98%. They comply with FDA requirements and are silicone-free.
| Code | |||
|---|---|---|---|
| Cartridges type | Length | Fineness | Version |
| FKT-A | 20 | 10 | 3 |
| Version | |
|---|---|
| DOE (standard) polypropylene flat gaskets | (0) |
| SOE 222-O Rings / Javelin | (2) |
| SOE 226-O Rings + bayonet / spear | (3) |
| SOE 222-O rings / polypropylene end cap | (4) |
| Technical data | |
|---|---|
| Lengths | 5" | 9 ¾" | 10" | 20" | 30" | 40" |
| Diameter | AD: 64 mm / ID: 27 mm |
| Filter fineness (micron absolute): | 0,5 | 1 | 3 | 5 | 10 | 20 | 30 | 50 | 70 | 90 | 120 |
| Flow rate of a 10” candle (m³/h), (water): | 1,9 | 1,0 | 1,1 | 1,4 | 1,6 | 2,3 | 2,6 | 3,0 | 3,0 | 3,0 | 3,0 |
| Max. differential pressure | 4.0 bar at 25°C |
| Max. Operating temperature | 80°C |
