Cartridge filters E-Series

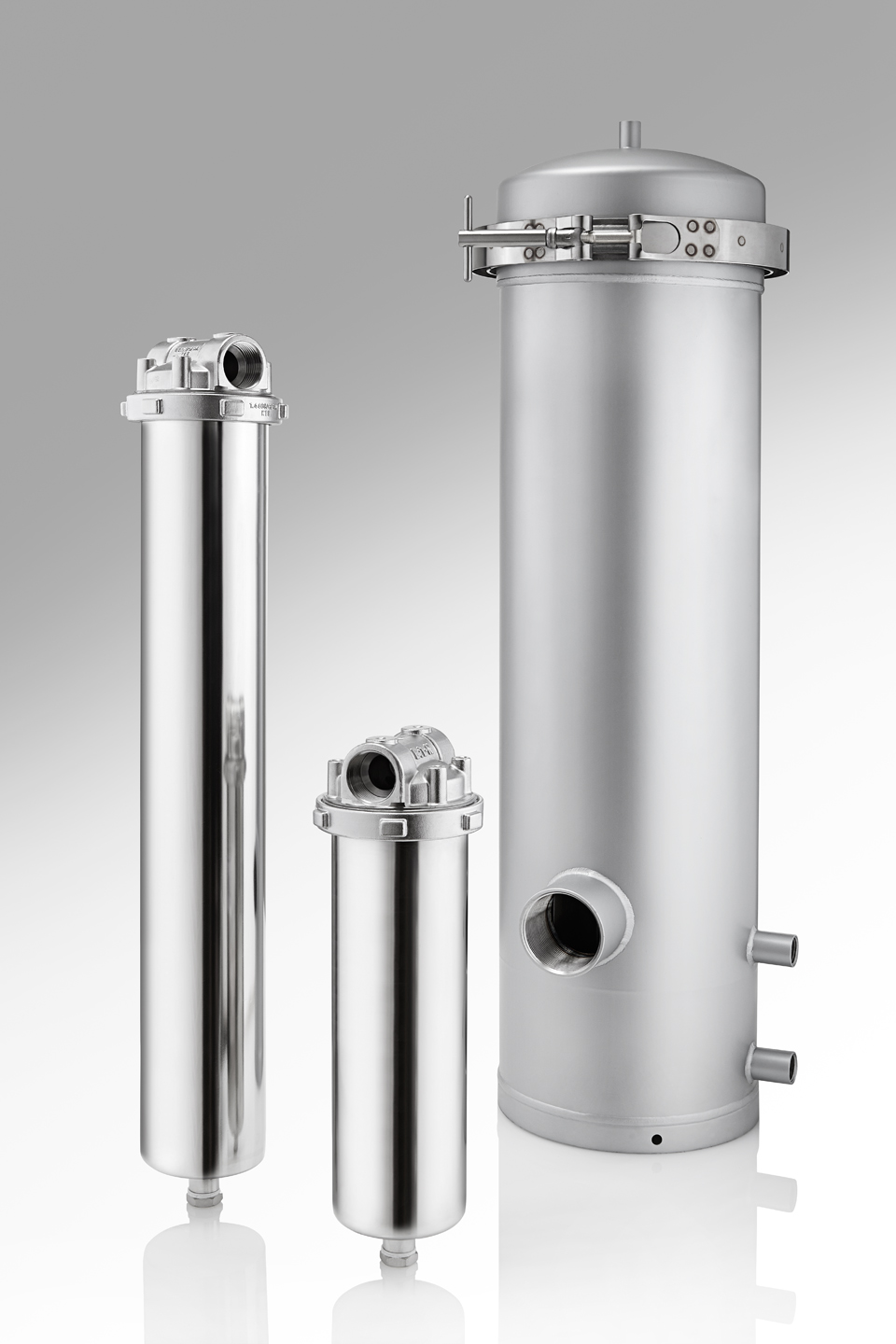

Stainless steel cartridge filters are of a light stainless steel design and can be supplied for 1, 5, 12 and 22 DOE filter cartridges in lengths of 5“ to 40“.

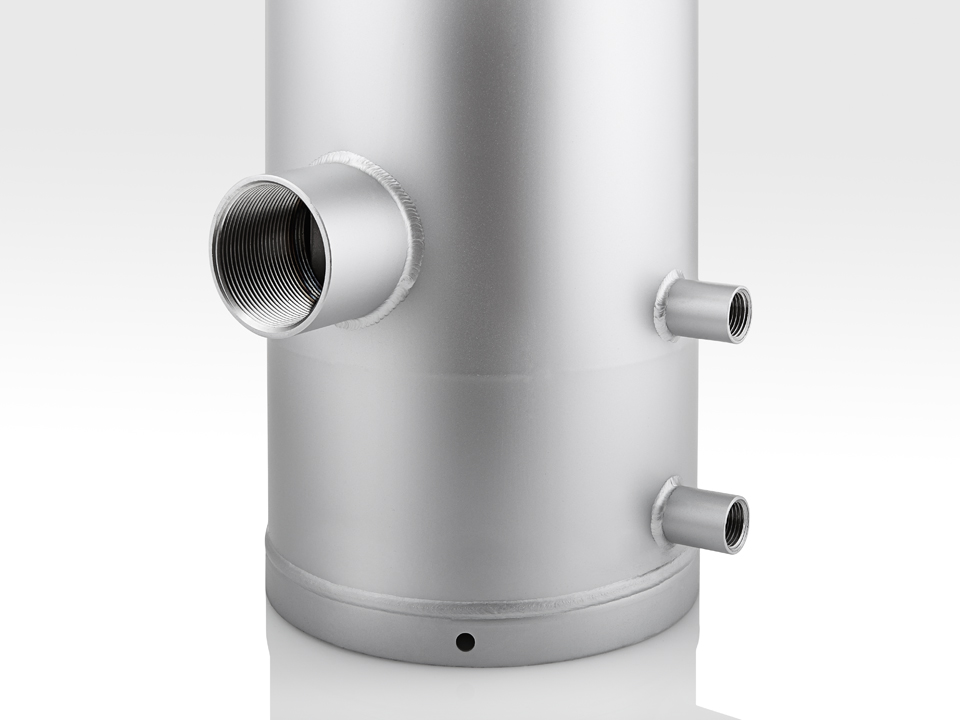

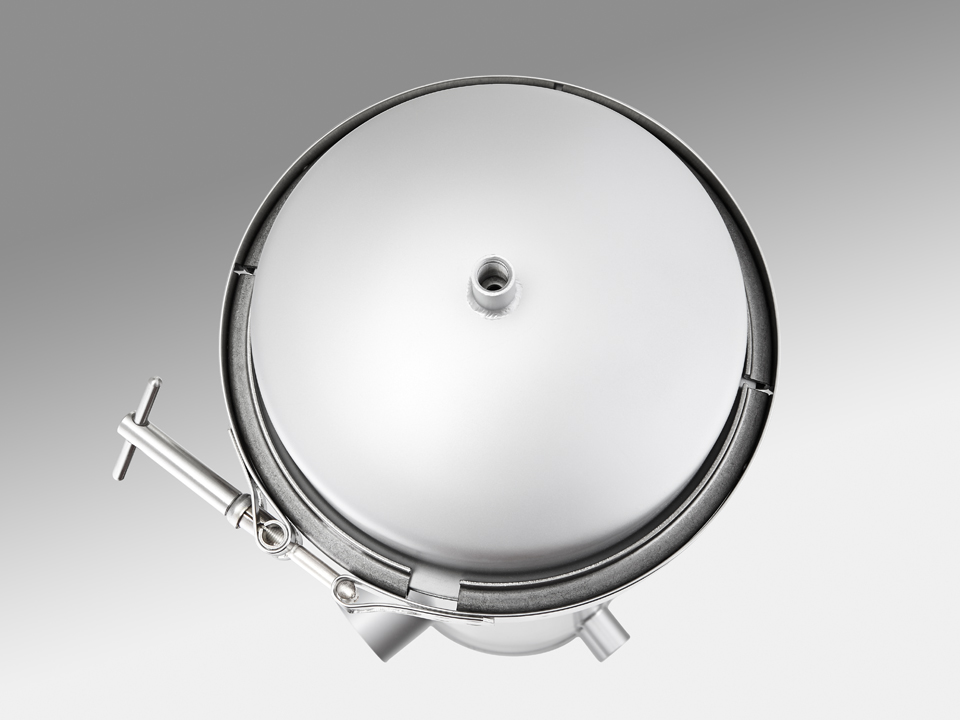

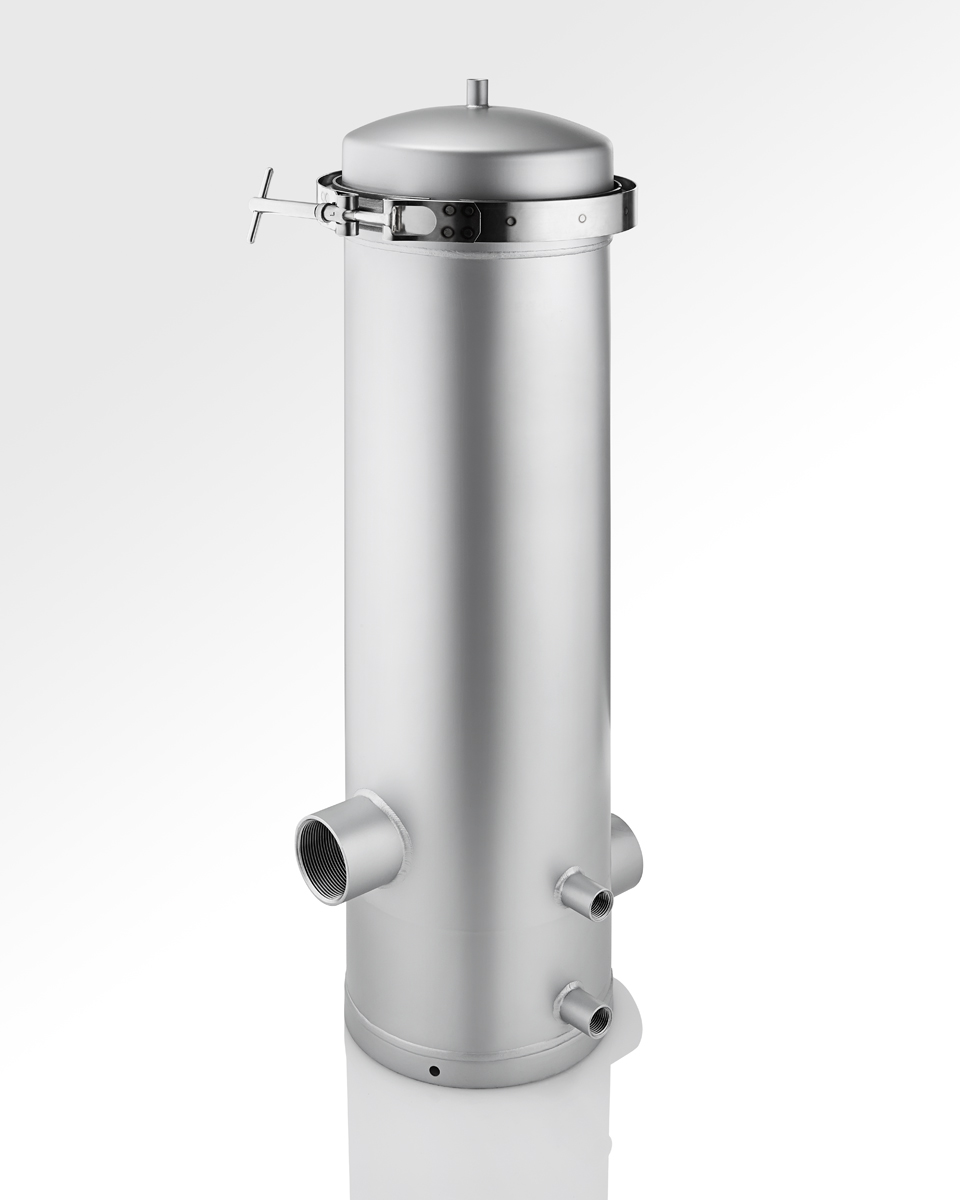

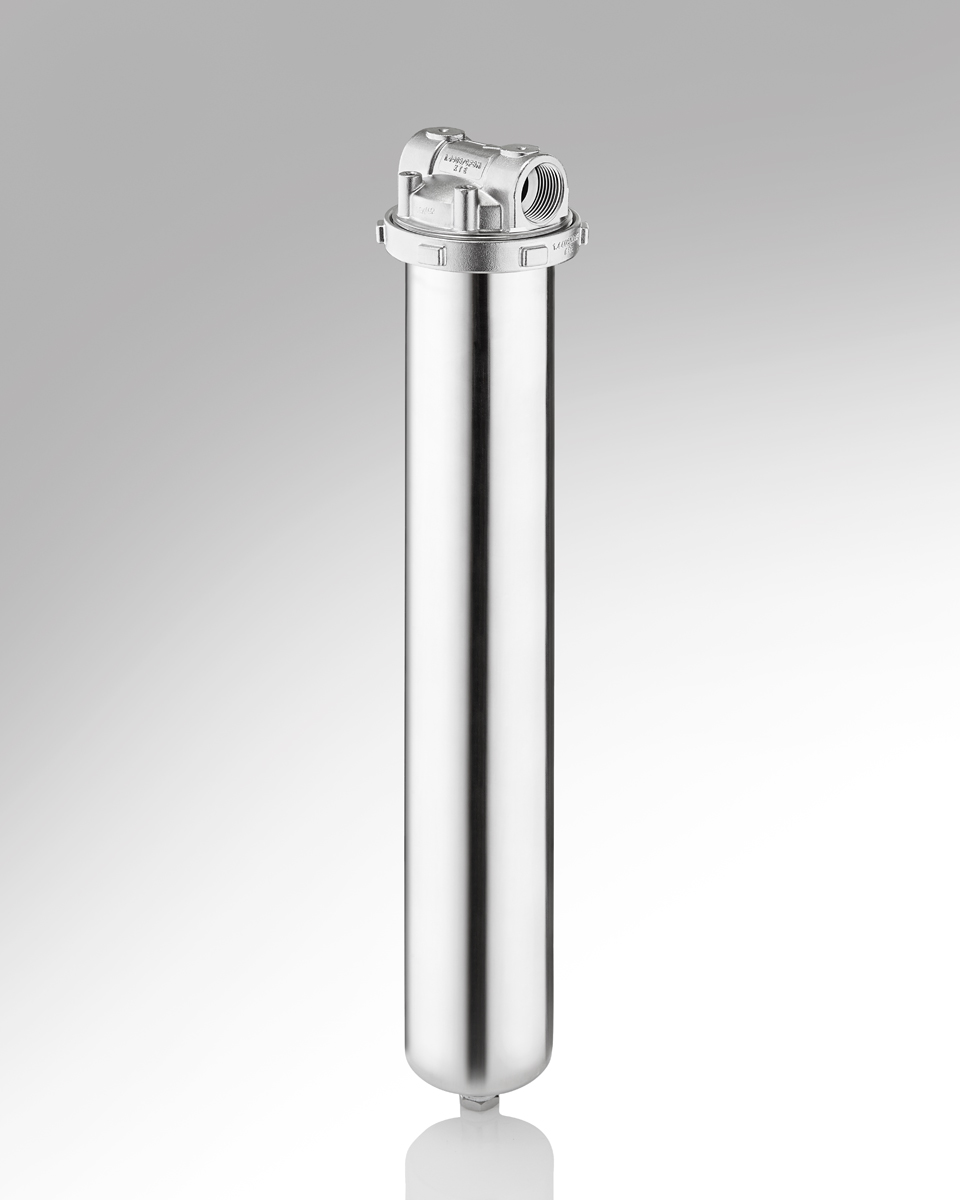

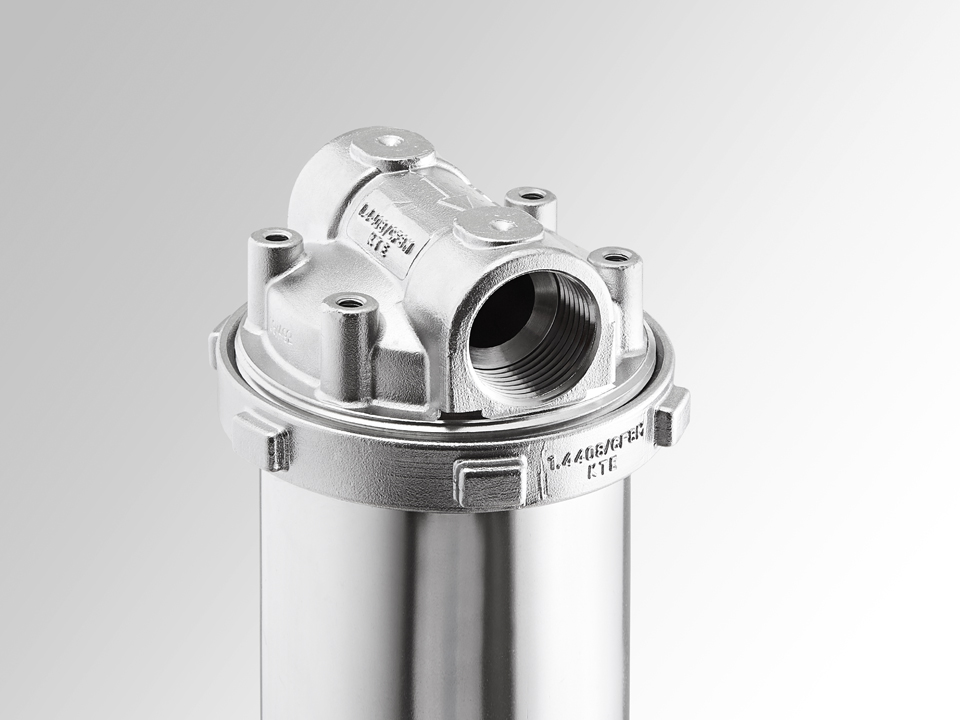

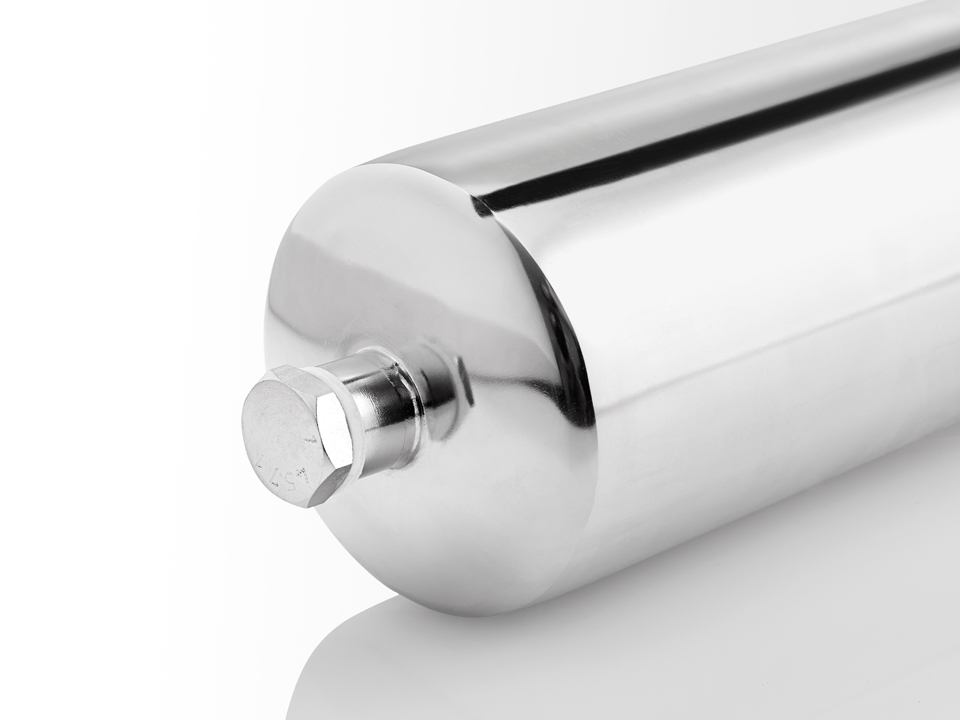

The single version comprises a head and a sump, which can be screwed together using a locking nut. The inlet and outlet (¾“ or 1“ threads) are arranged opposite each other in the housing head. The seal is provided by an NBR O-ring seal (EPDM or FPM upon request). The housing can be drained via a 3I8“ thread on the base. A mounting console for wall mounting can be supplied as an accessory. The 5, 12 and 22 versions are standing versions or versions supplied with a leg assembly. The housings are closed using a V-clamp. The seal is provided by an NBR O-ring seal. FPM seals can also be supplied.
| Coding | |||||
|---|---|---|---|---|---|
| Device type | Number of candles | Length | Material | Connection | Emptying |
| E | 1 | 20 | S | 1 | E |
| Technical data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| E- | 1-5 | 1-9 | 1-10 | 1-20 | 1-30 | 1-40 | 5-9 | 5-20 | 5-30 | 5-40 |
| Max. Flow rate (m³/h) | 1,1 | 2,4 | 4,8 | 4,8 | 4,8 | 4,8 | 8,4 | 16,8 | 25,2 | 33,6 |
| Permissible operating conditions (bar/°C) | 17/121 | 10/121 | ||||||||
| Volume (liters) | 0,7 | 1,51 | 1,54 | 2,98 | 4,42 | 5,87 | 14 | 23 | 31 | 38 |
| Weight (kg) | 2,5 | 3,28 | 3,29 | 3,82 | 4 4,34 | 4,87 | 13 | 16 | 19 | 22 |
| Inlet/outlet | ISO 228/1 - 1” BSP thread | 2” BSP thread | ||||||||
| Emptying | 3/8” socket (ISO 228-1) | 2 x ½” BSP socket | ||||||||
| Venting | none | ¼” BSP socket | ||||||||
| Cartridge filter material | Stainless steel 1.4408, 1.4571 | Stainless steel 1.4301 | ||||||||
| Material seals | NBR O-ring seal | NBR O-ring seal | ||||||||
| Candle length (") | 5 | 9¾ | 10 | 20 | 30 | 40 | 9¾ / 10 | 19½ / 20 | 29¼ / 30 | 39 / 40 |
| Candle number | 1 | 5 | ||||||||
