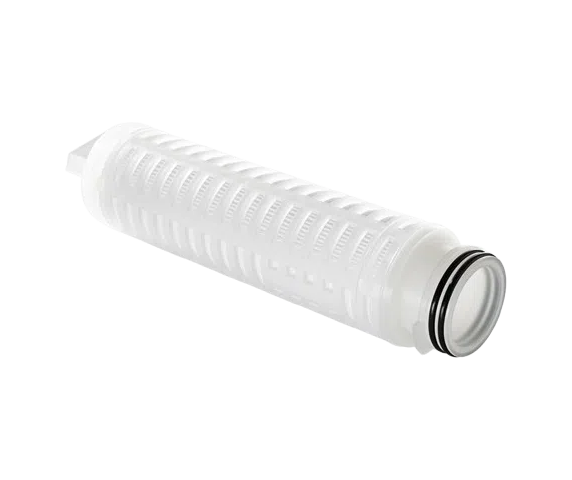

Pleated filter cartridges FKP
These candles have a pleated surface that enables a long service life if filtration
performance is high.
Applications
Food, beverages, aqueous solutions, chemicals, drinking water, pharmaceuticals, cosmetics, process water, reverse osmosis prefiltration, printing inks, wine prefiltration, magnetic belt dispersions, aeration and deaeration filters, oil, gas, inks.
Features (depending on the series)
- Materials: Polypropylene, borosilicate microfibres
- Absolute filter candles with a filter efficiency of 99.98%
- Nominal filter candles with a filter efficiency of 90%
- FDA-, USP-compliant
- Sterilisation / in-line sterilisation / autoclavable
| Coding | |||||
|---|---|---|---|---|---|
| Candle type | Series | Length | Fineness | Version | Gasket |
| FKP | 1 | 10 | 10 | 3 | 5 |
| Version | |
|---|---|
| DOE open on both sides | (0) |
| SOE 226-O Rings + bayonet / end cap | (1) |
| SOE 222-O Rings / Javelin | (2) |
| SOE 226-O Rings + bayonet / spear | (3) |
| SOE 222-O rings / polypropylene end cap | (4) |
| DOE internal O-rings | (5) |
| SOE internal O-ring | (6) |
| Technical data | |
|---|---|
| Lengths | 9 ¾" | 10" | 20" | 30" | 40 |
| Diameter | OD: 69 mm / ID: 25.4 mm or 27.9 mm |
| Filter fineness (micron): | from 0.2 to 100 µm (absolute or nominal) |
| Max. differential pressure | 5.2 bar at 20°C |
| Max. Operating temperature | 80°C |
