WeBaX sieve bag
The innovation in the laboratory for profitable, open filtration of small batches

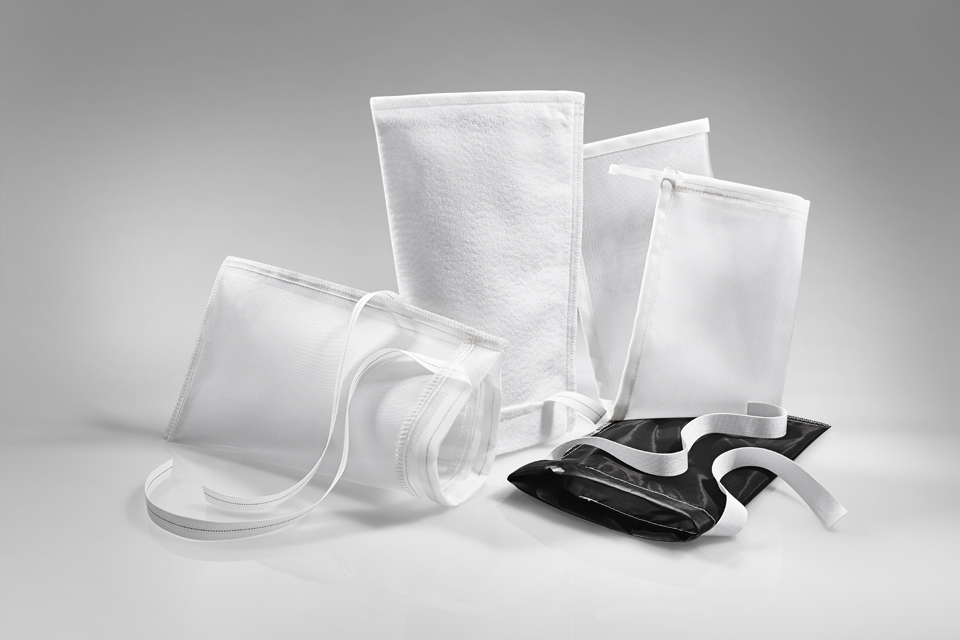

Sieve and filter bags by Schwegman are the German original. They were invented and patented in the 1960s by Bernd Schwegmann, who called them “sieve sachets”. Made from polyamid monofilament and needle felt, sieve and filter bags are durable and perfectly suited for filtering liquids. They are used primarily in industrial operations, such as in the production of paints, varnishes, cosmetics, foods and pharmaceuticals as well as in filtration systems where no filter housing is available or converting filtration units would be too expensive.

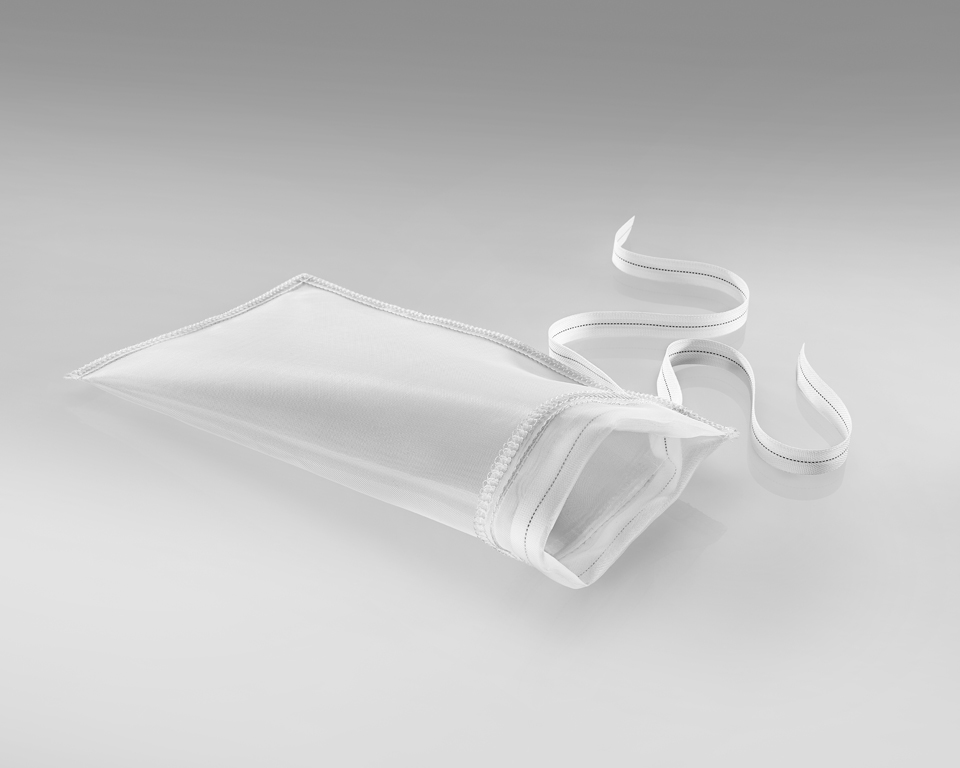

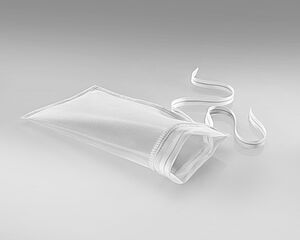

Sieve bags – reusable, flexible and easy to clean

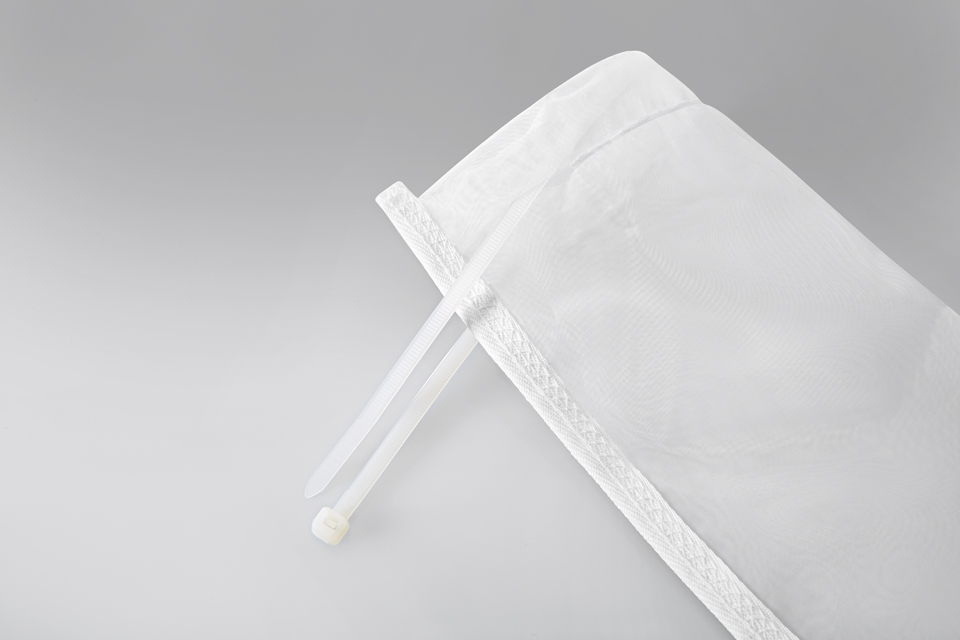

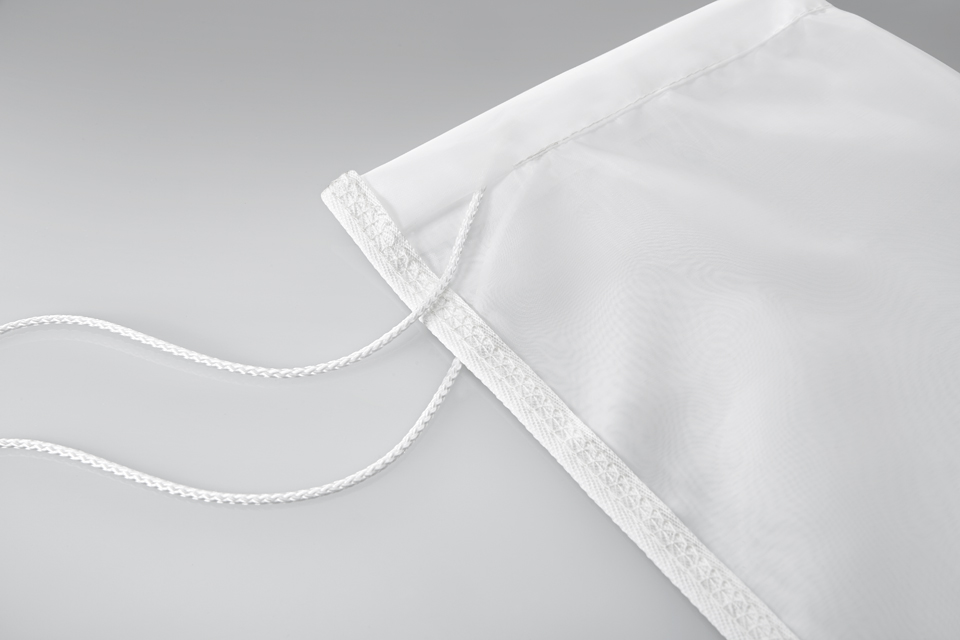

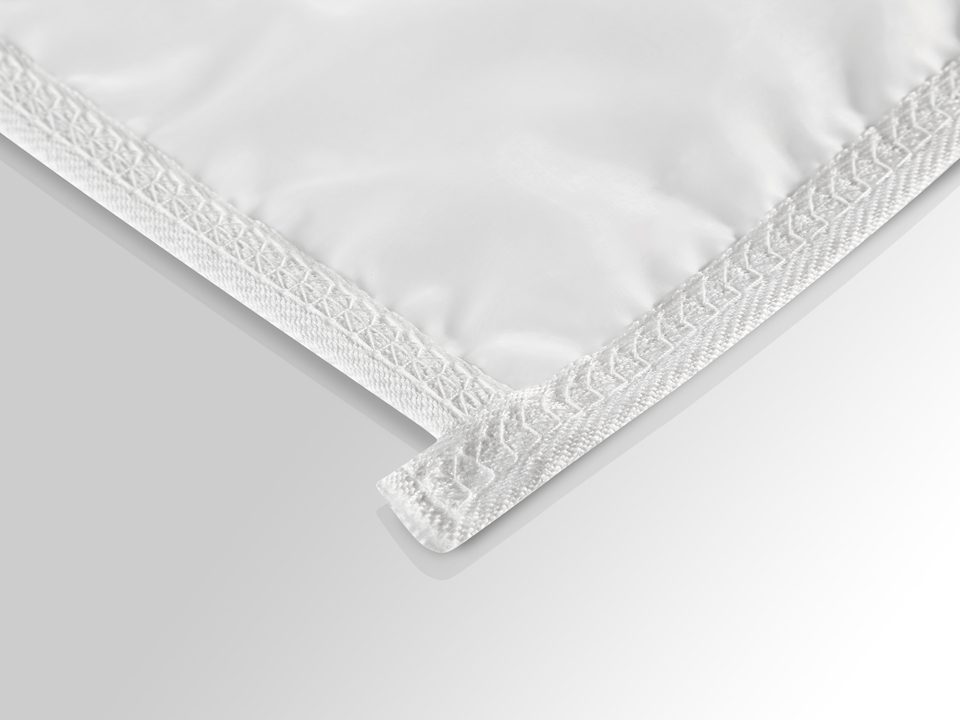

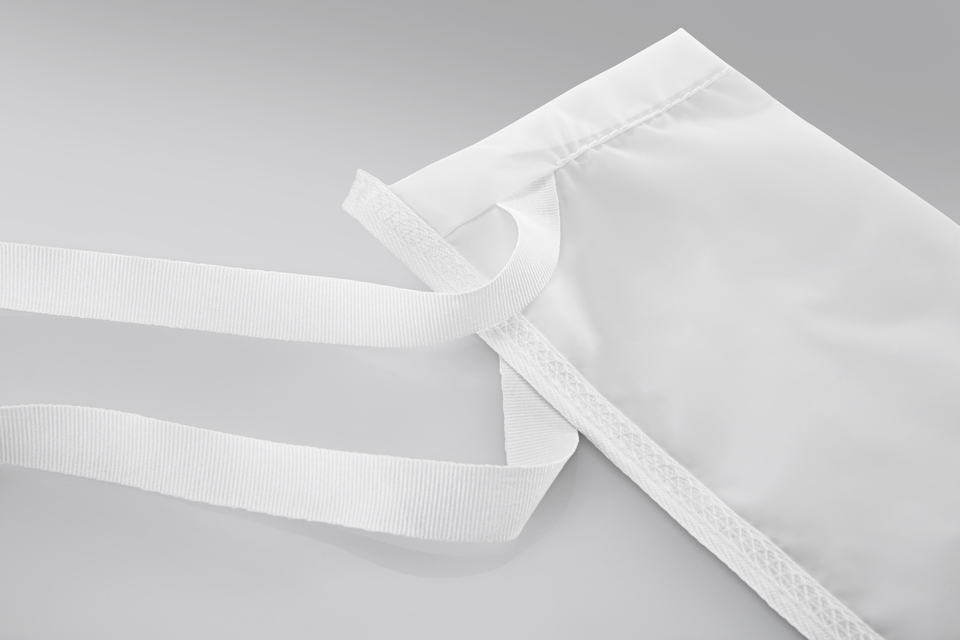

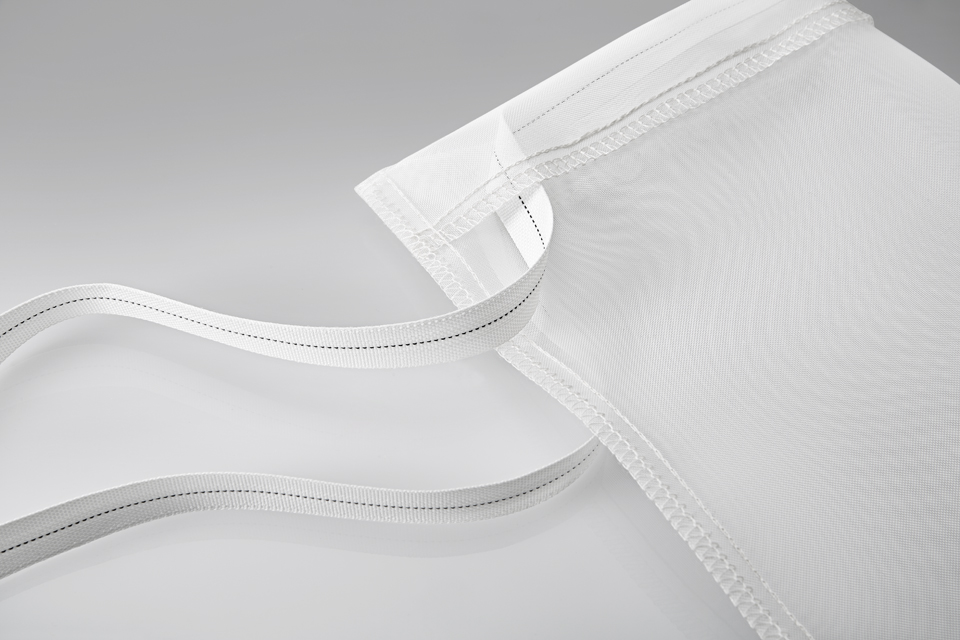

Sieve bags are made from monofilament textile and are perfectly suited for filtering solid particles. Thanks to the drawstring sewn into each bag’s opening, they can be installed quickly and easily at any outlet without the need for tools. Additional aids for installation, such as straps and cable ties, are available upon request. Sieve bags can be replaced quickly and easily for any product change. Our large selection of different mesh sizes allow for high flow rates and versatility. Depending on your use case, the bags can be cleaned and used multiple times. We also offer custom-tailored sieve bags for your needs in any size, shape and quantity.

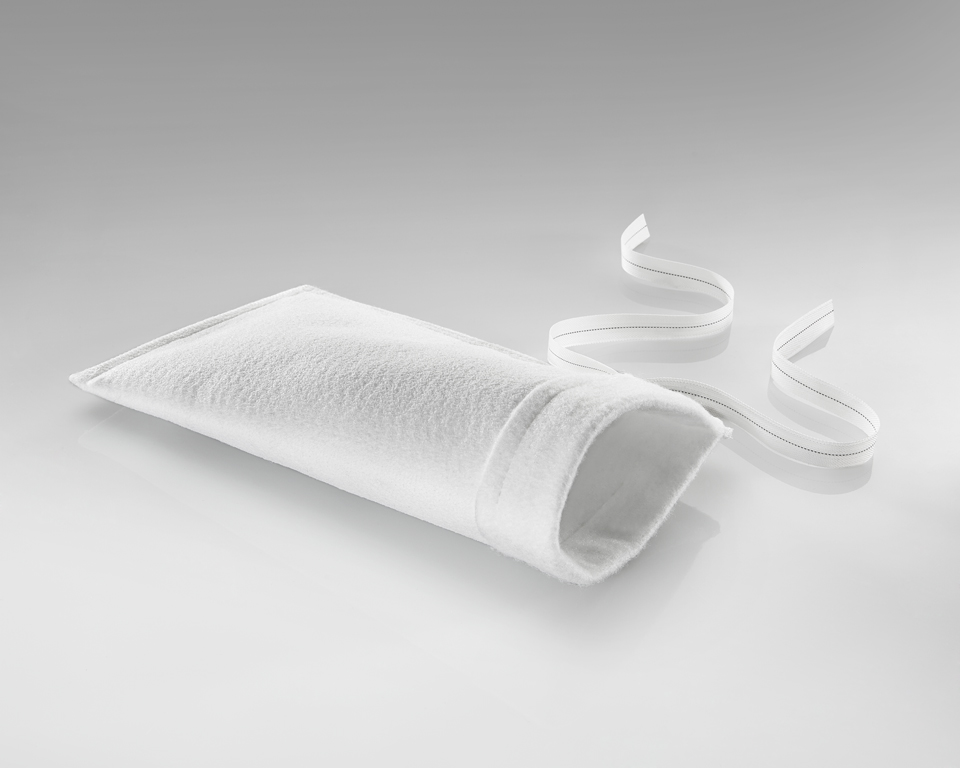

Needle-felt filter bags for depth filtration
Needle-felt filter bags are ideal for filtering gelatinous particles. These bags can only be used once as the particles get caught in the felt, which cannot be cleaned.
Sieve bags for filtering foods (declaration of conformity)
High quality and safety are of the utmost importance to us. We offer sieve bags with a declaration of conformity for use in the food and animal feed industries. These bags are manufactured and packed in accordance with EU regulations 1935/2004 and 10/2011. They are certified for food-contact applications and meet high product-safety standards.

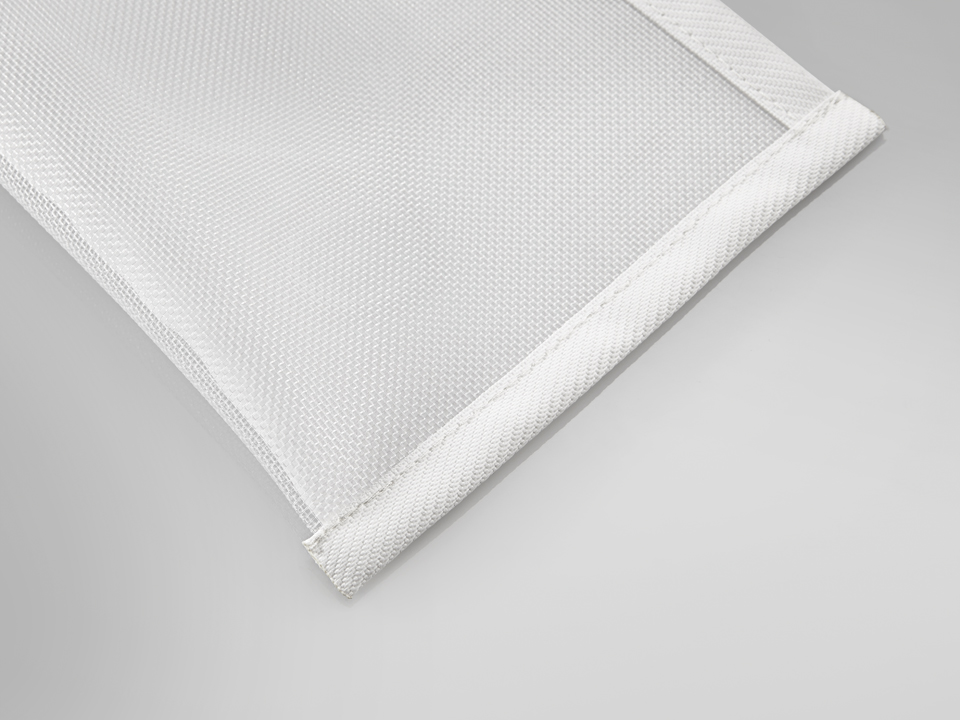

Double-layer sieve bags for exact results via depth filtration
Double-layer sieve bags are the right choice for applications that require more than one filter layer, a supporting media or filtering both solid and gelatinous particles. Where regular filters are not sufficient, double-layer sieve bags produce convincing results thanks to depth filtering.

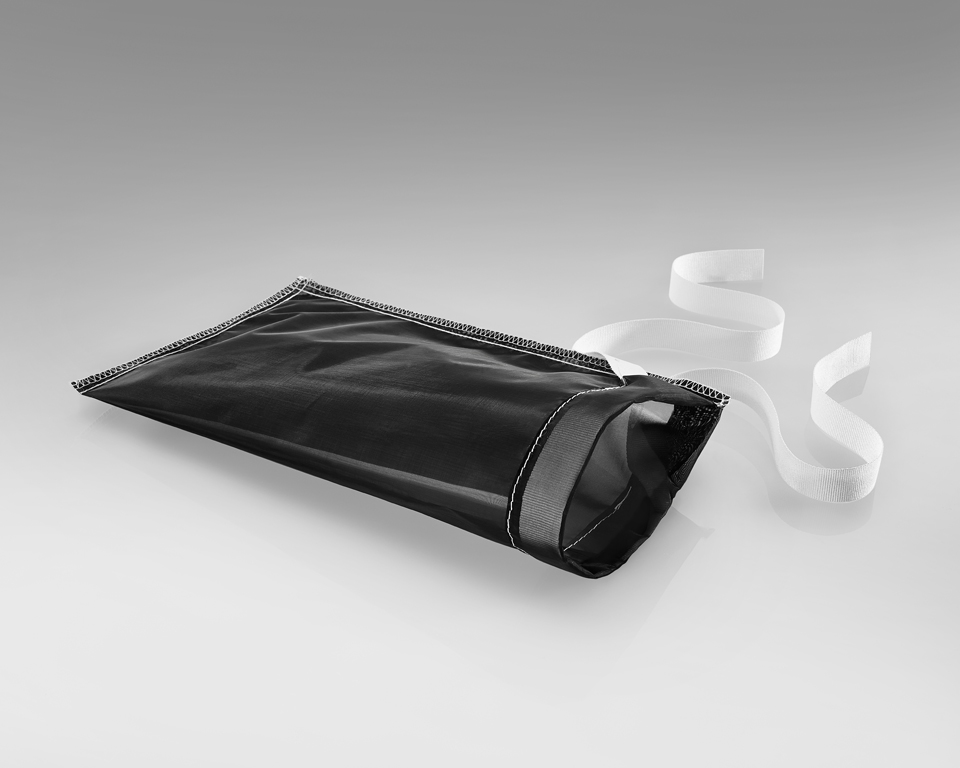

Antistatic sieve bags for reducing electric discharge
Antistatic sieve bags are used for filtering materials that are electrostatically charged. The electrically conductive strands sewn into the filter mesh reliably prevent electric discharge. The mesh does not clog up and the risk of discharge (sparking) is reduced. Compared to metal filters, polyamide fibres can be processed in a large variety of ways.

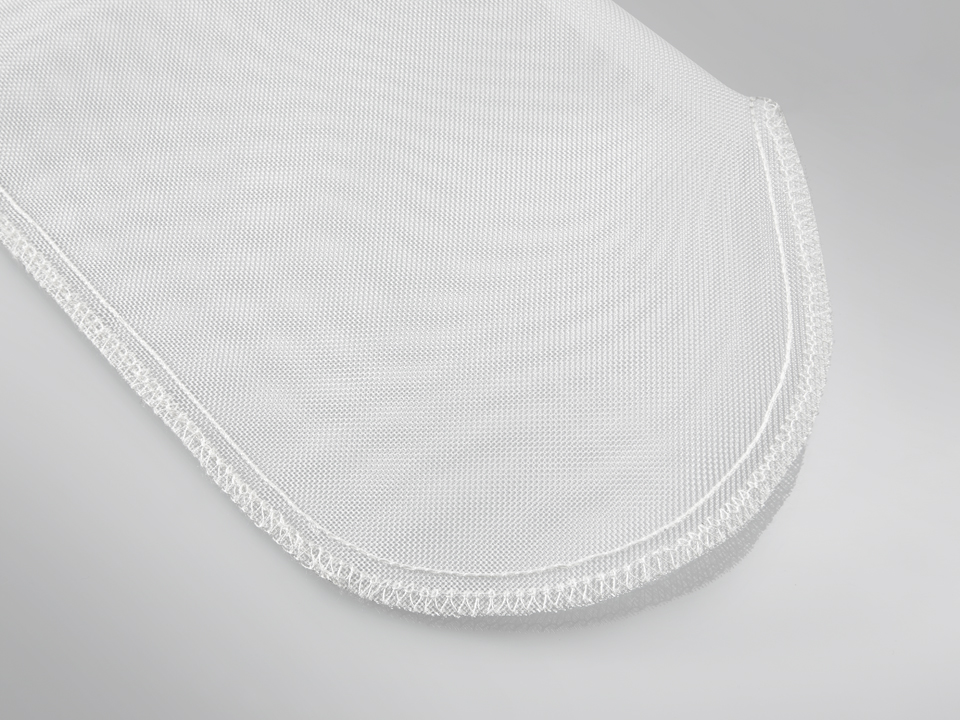

Round-bottom sieve bags (also available as U- or V-shapes)

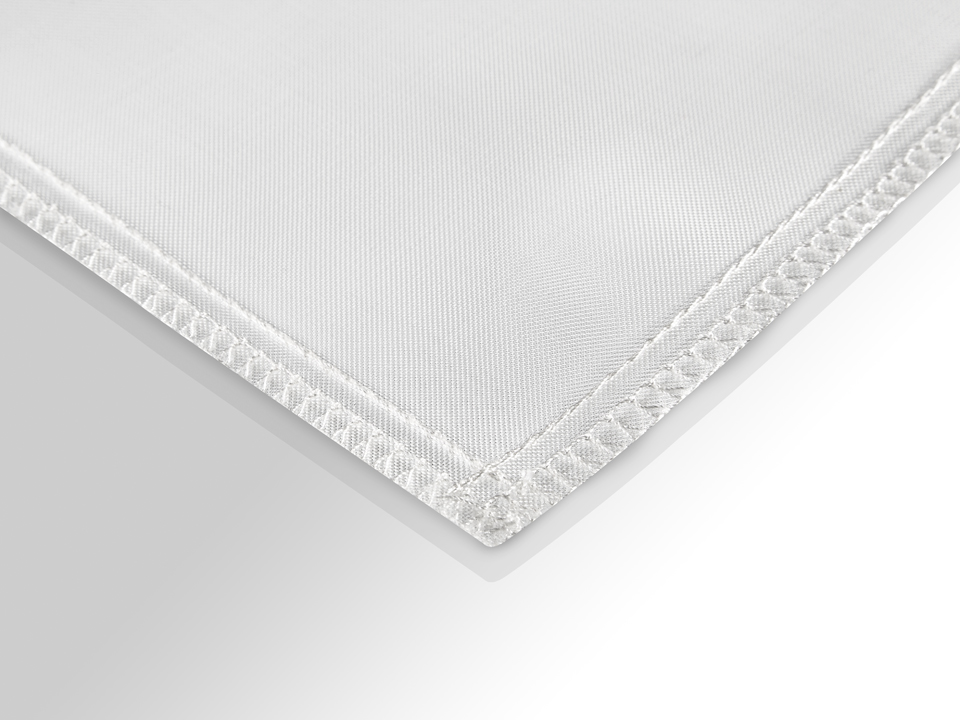

The standard filter bag is sewn flat at the bottom. As an alternative for more filter surface, we offer a round base. We can produce this cylindrical design from a diameter of 5 cm. On request, we can also produce a U-shaped or V-shaped (tapered) base for the filter bag.
In addition to the standardized filter and sieve bags, we are happy to create individual filter media on request that are perfectly tailored to the technical requirements of your application. We look forward to receiving your inquiry via our website and will be happy to send you free samples!
| Code | ||
|---|---|---|
| Filter medium | Mesh opening | Size |
| PA | 250 | G1 |
| Standard sizes in cm | ||||
|---|---|---|---|---|
| G0 | G1 | G2 | GS | |
| B | 10 | 15 | 15 | Custom-made product according to your size specifications |
| L | 45 | 45 | 25 |
| Filter medium | Code | Filter fineness / mesh size in microns | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5 | 10 | 15 | 25 | 30 | 50 | 56 | 60 | 70 | 80 | 100 | 125 | 150 | 180 | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1.000 | 1.320 | ||
| Polyamide monofilament | PA | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • |
| Polyester monofilament | PES | • | • | • | • | • | • | • | • | • | • | • | |||||||||||||
| Polyamide Carbon | PAC | • | • | • | • | • | • | ||||||||||||||||||
| Polyester needle felt | PE | • | • | • | • | • | • | • | |||||||||||||||||
| Polypropylene needle felt | P | • | • | • | • | • | • | • | |||||||||||||||||
