Cartridge filters K-Series

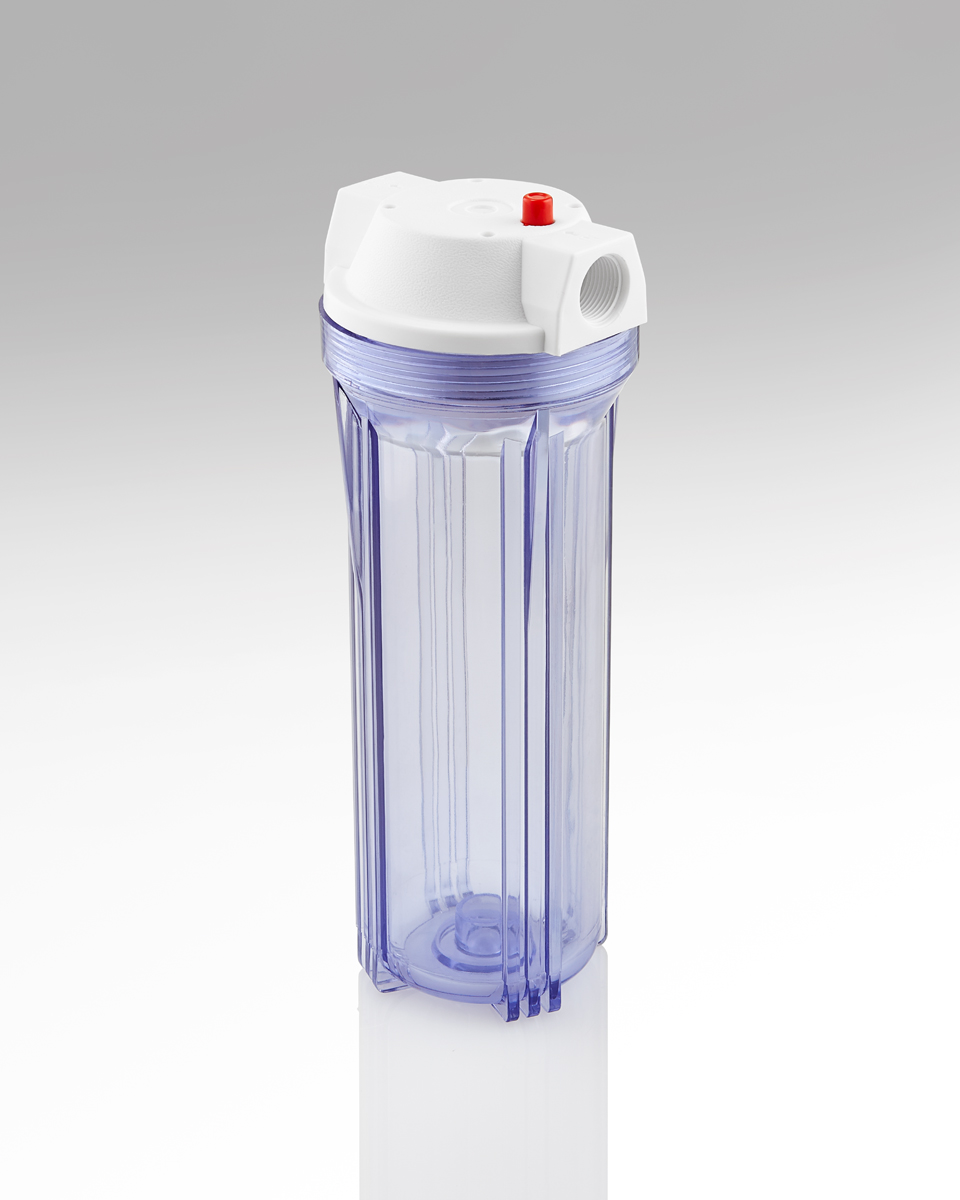

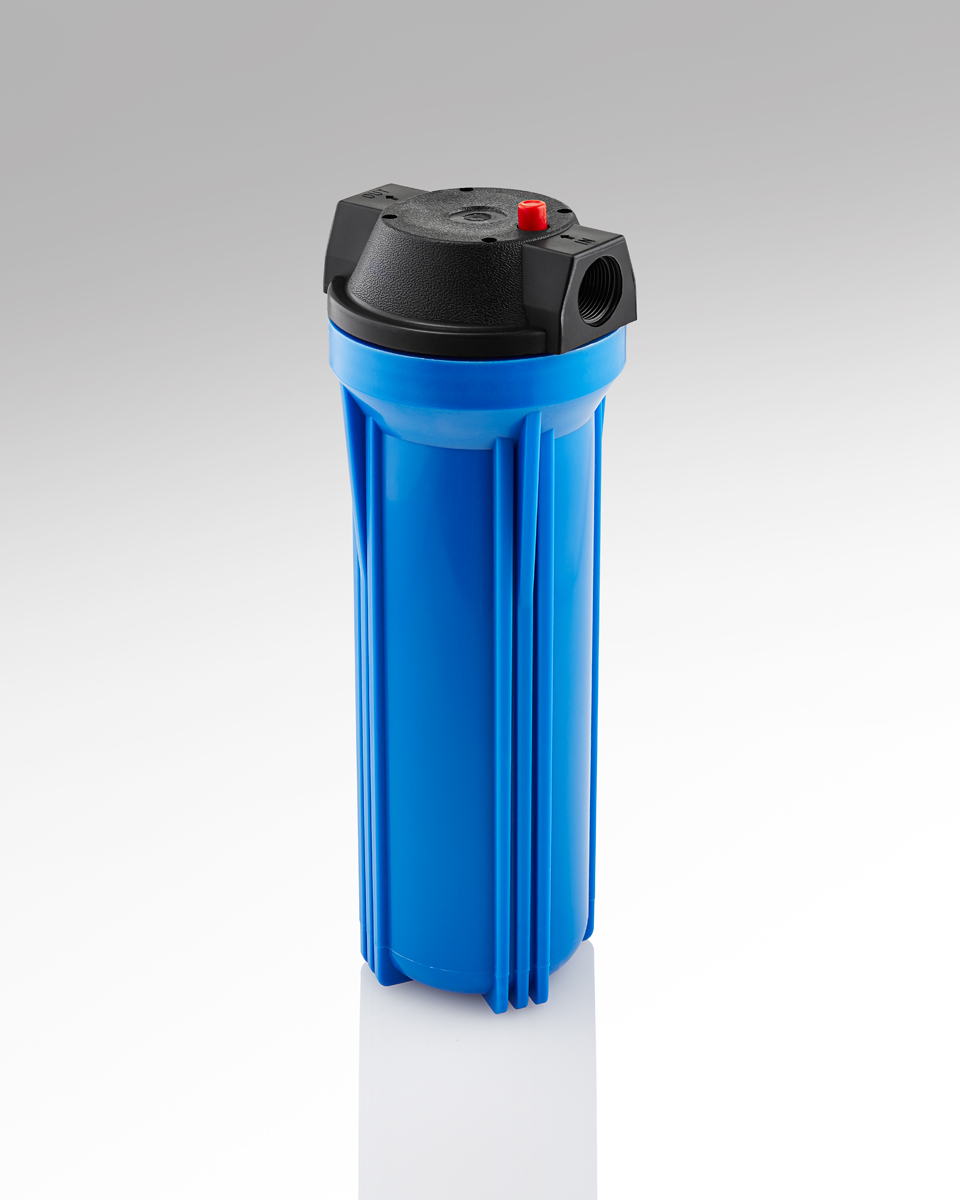

Plastic candle filters are single candle filters for standard filter candles that are open on both sides.

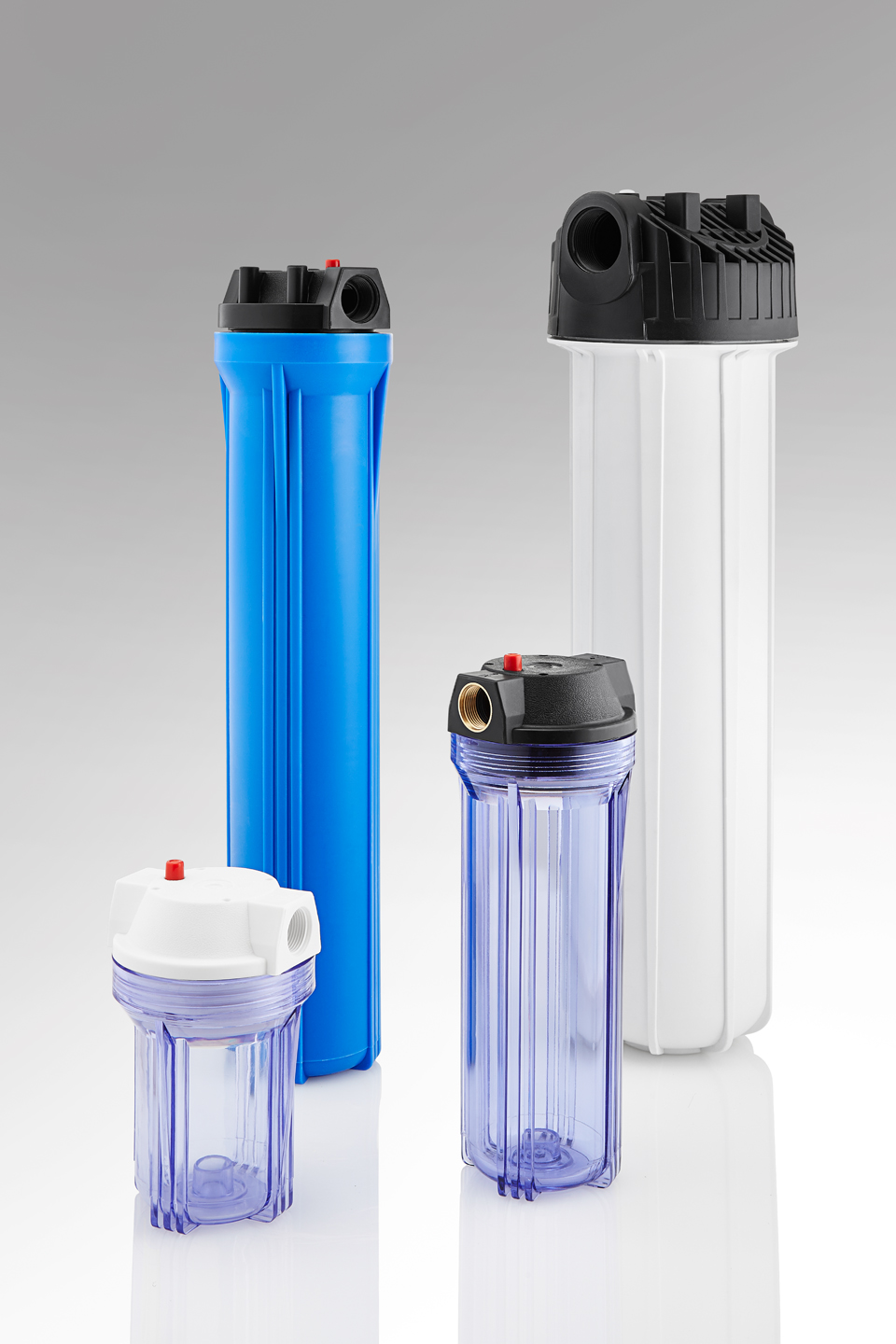

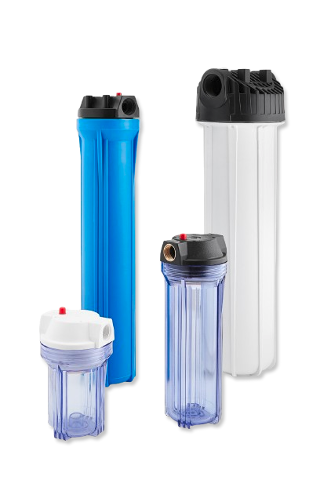

The plastic filter housings are available in two housing diameters („S“ version, 12.2 cm and „L“ version, 18.5 cm) and three lengths (5“, 9“ and 20“).

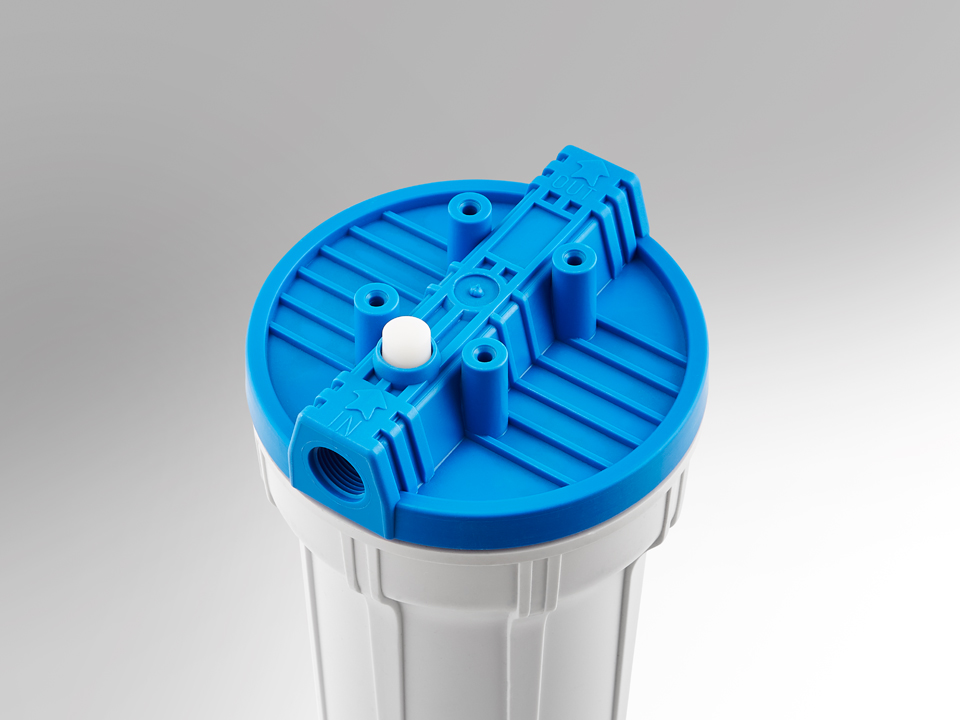

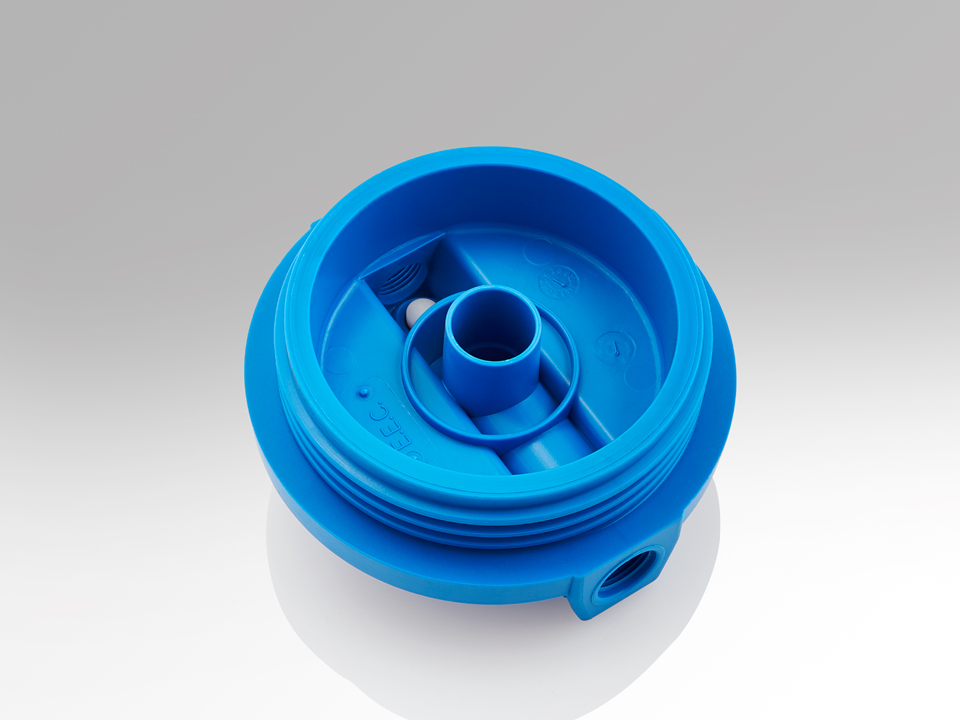

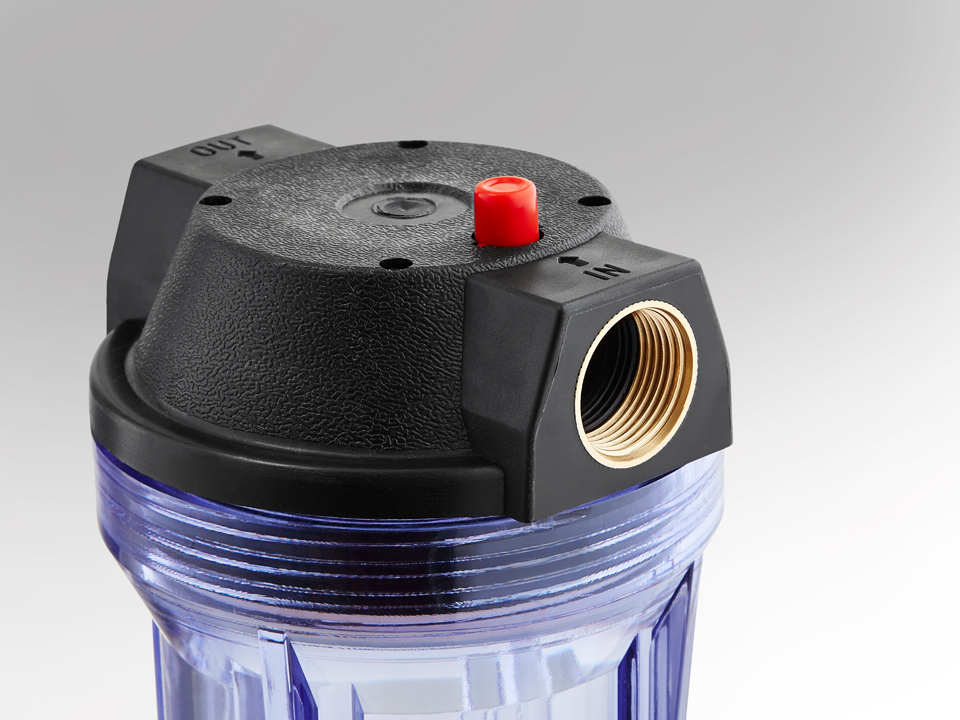

The housing head is made of polypropylene and has an inlet and an outlet in ?“ BSP, ¾“ BSP, 1“ BSP or 1½“ BSP which are arranged opposite each other in the filter housing‘s head. The housing is therefore easy to install on the piping.
| Technische Daten | |||||
|---|---|---|---|---|---|
| K- | 1-5-S-P-3/8 1-5-S-S-3/8 | 1-9-S-P 1-9-S-S | 1-20-S-P | 1-9-L-P-1,5-E | 1-20-L-P-1,5-E |
| Max. Betriebsbedingungen (bar/°C) | 8/50 | ||||
| Filteranschlüsse (N1/N2) BSP Innengewinde (") | 3/8 | 3/8, ¾ | ¾, 1 | 1½ | 1½ |
| Filterkerzenlänge (") | 5 | 9¾ | 20 | 9¾ | 20 |
| Werkstoff Filterkopf | Polypropylen (P) | ||||
| Werkstoff Filtersumpf | Polypropylen (P) | ||||
| Werkstoff O-Ringdichtung | NBR | ||||
| Entlüftungsventil | optional (Zusatz „E“) | ja | |||
| Schlüssel | S-K-P-S | S-K-P-L | |||
| Befestigungskonsole | BK-K-S-S | BK-K-S-L | |||
