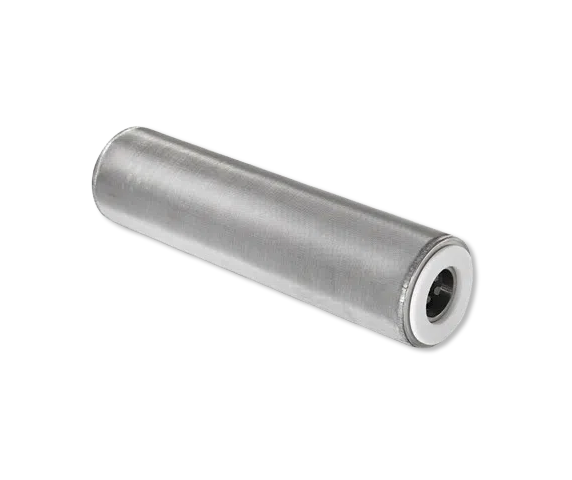

Wire cloth filter cartridges FK-MK

These filter candles made of metal wire are used when plastic filter candles cannot be used due to high temperatures or certain chemicals.

The metal wire filter candles are completely plasma-welded, free of oil and thermally degreased. The end caps and the longitudinal seams are free of glues.
PTFE flat seals are inserted in the grooves of the filter candles that open on both sides (DOE) as standard. Threads or adapters that are customary in the industry can be manufactured according to the housing type. You can choose between filter finenesses of from 1 ?m to 1000 ?m; bear in mind that the filter surface area decreases as the filter fineness increases. There is the option of using a pleated variant to increase the filter surface area.

Coding
Candle typeLengthFineness
FK-MK40100
Technical data
Lengths4 ¾" | 9 ¾" | 19 ½" | 29 ¼" | 39" | 40"
DiameterAD: 64 mm / ID: 27 mm
Mesh sizes (micron):1 µm to 1000 µm
Material:Stainless steel 1.4301
Sealing material:PTFE
Fabric surface:approx. 500 cm² (pleated version: 1,500 cm²)
Max. Operating temperature:up to 200°C with water
Recommended filter change:2 bar differential pressure
