SL Bag Filter Housing
Strong, economical and well designed

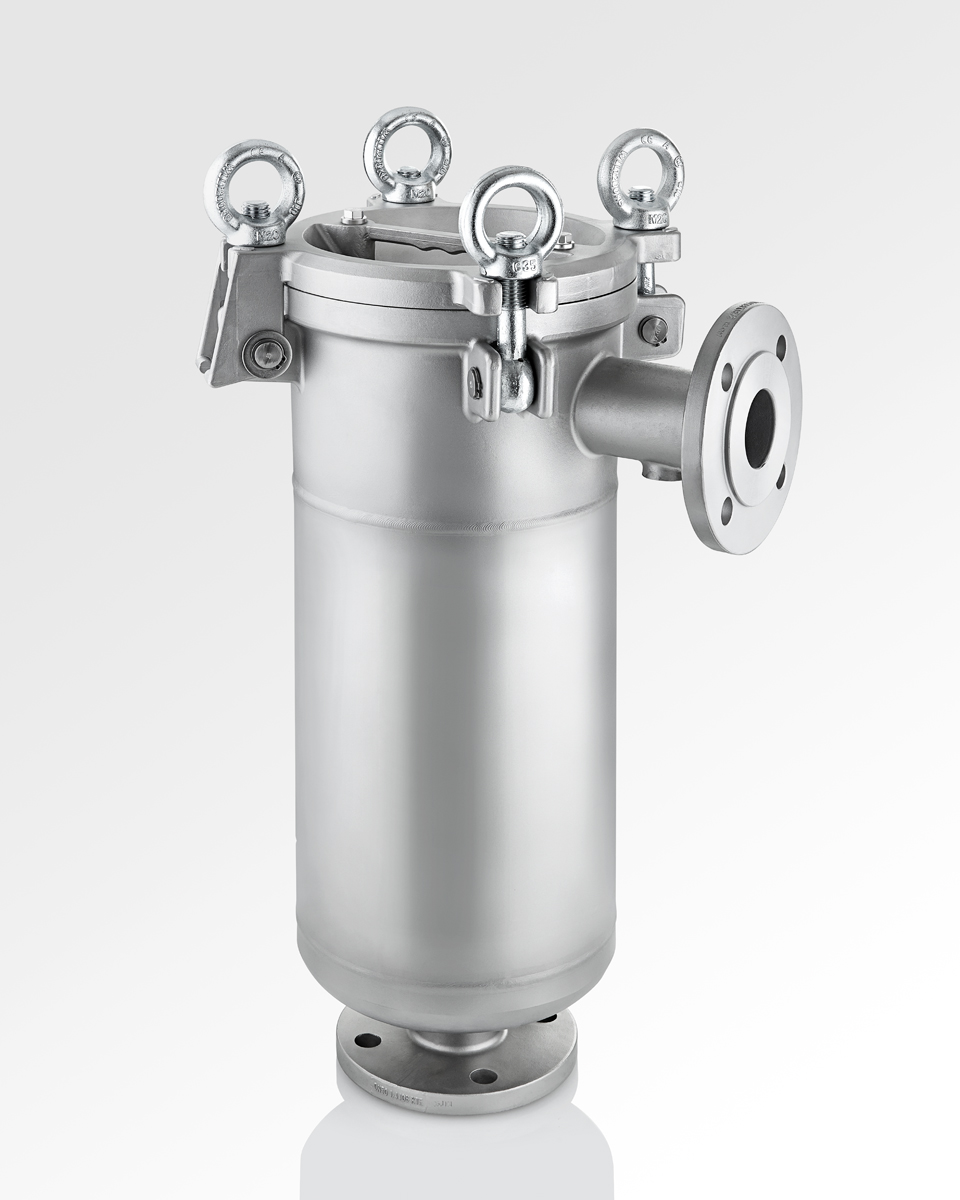

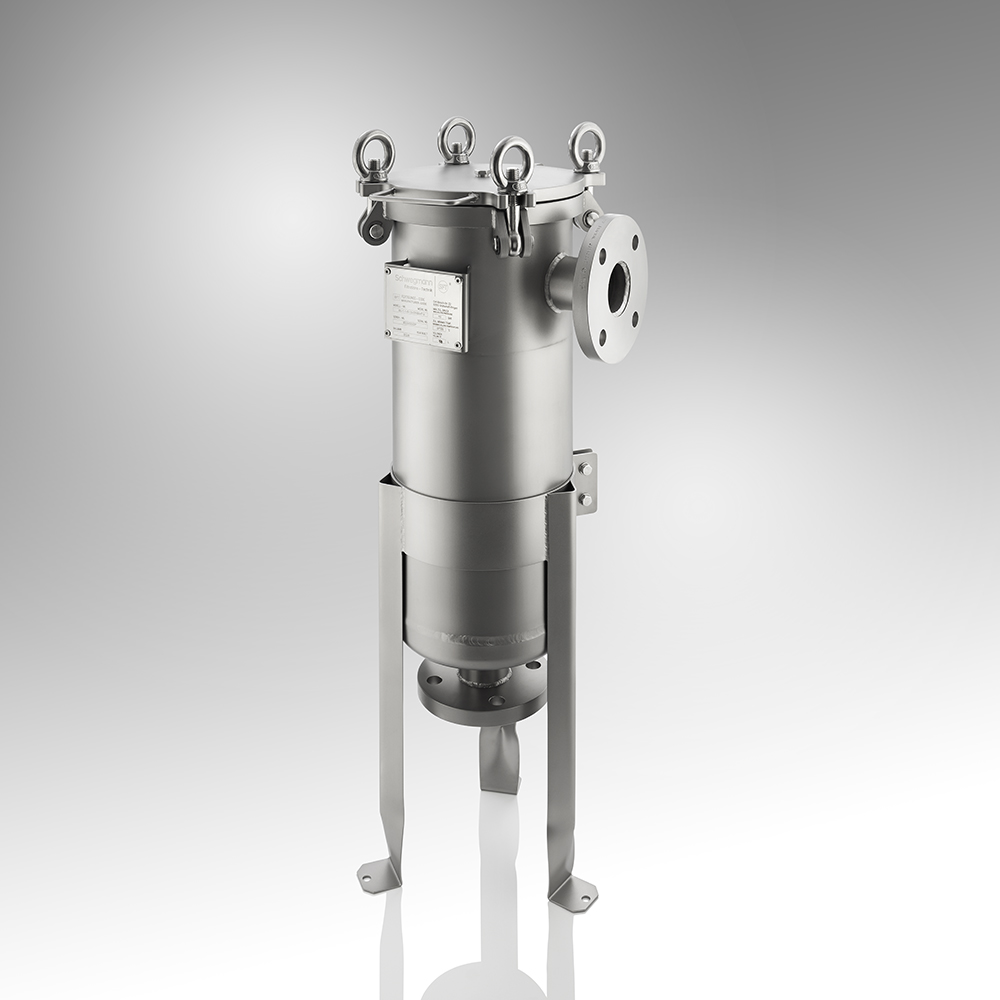

With the SL Bag Filter Housing Filtrations-Technik Schwegmann offers a reliable solution for a wide range of industrial applications. Efficient, hygienic and absolutely practical.

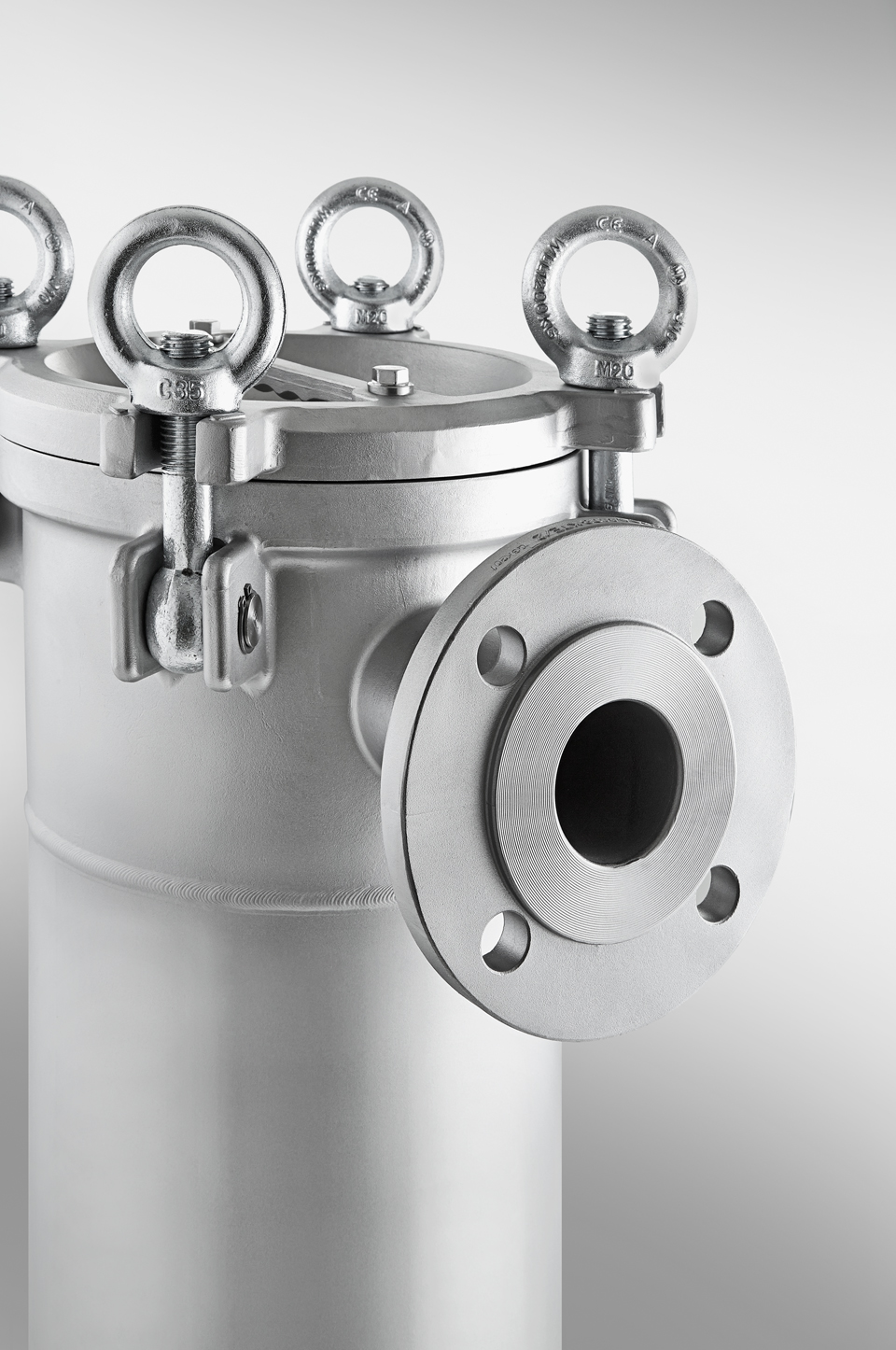

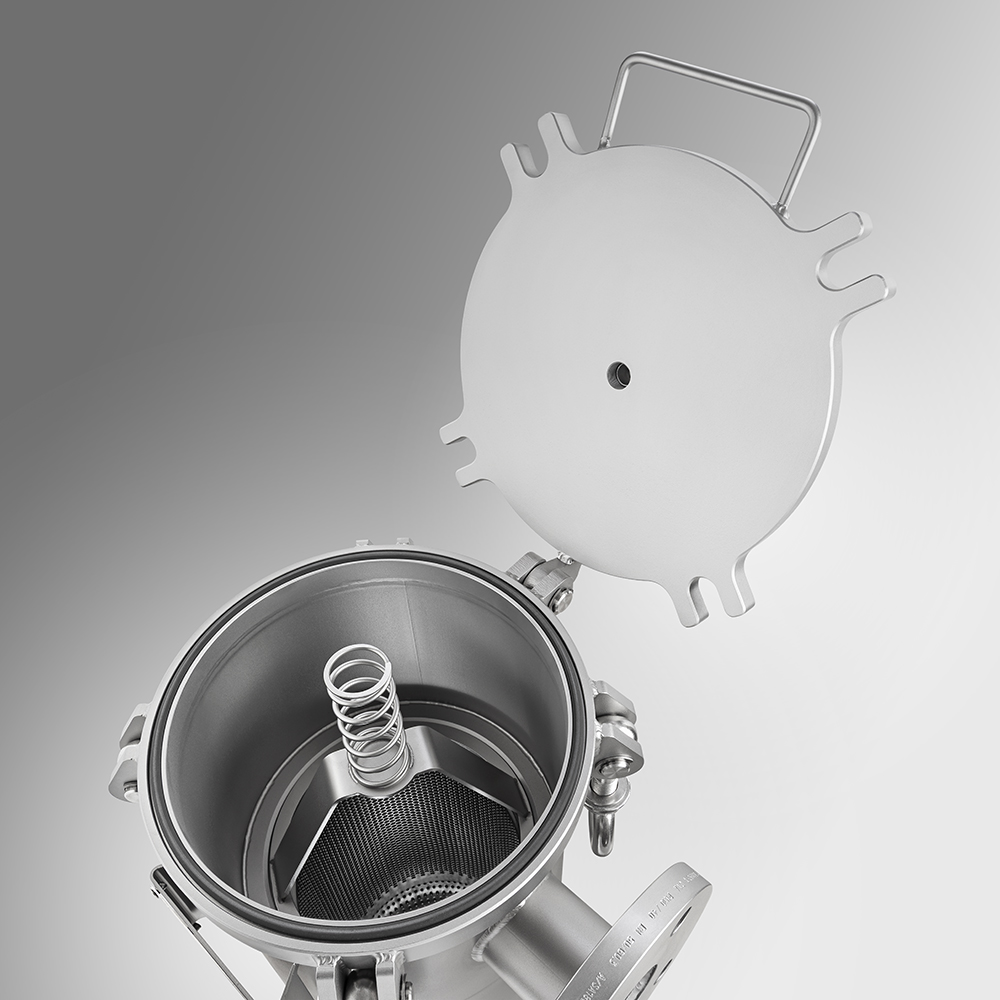

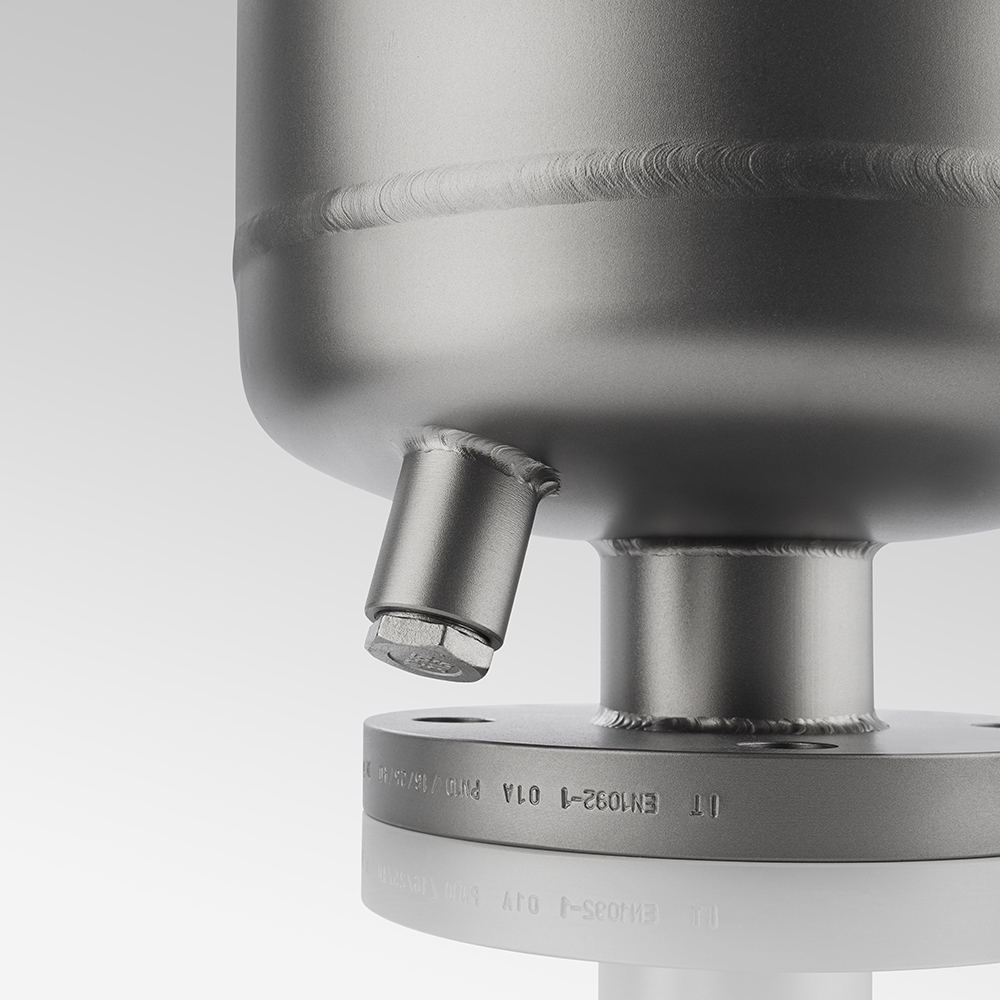

The robust stainless steel housing is in the mid-price segment and impresses with its well-thought-out design: a side inlet with a displacement cover prevents unfiltered liquid from overflowing. This makes changing the filter bag not only clean, but also particularly convenient.

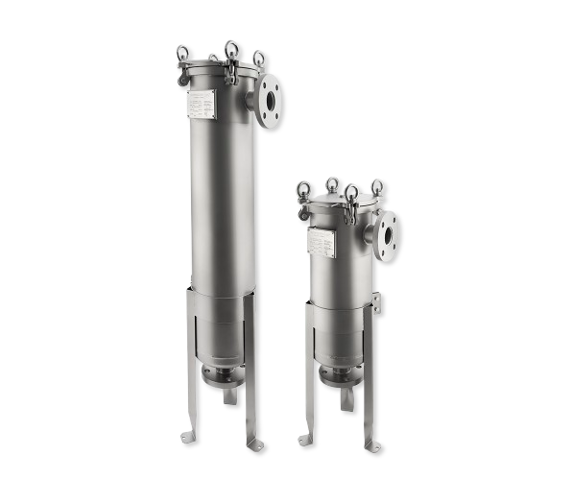

Size 1 and 2

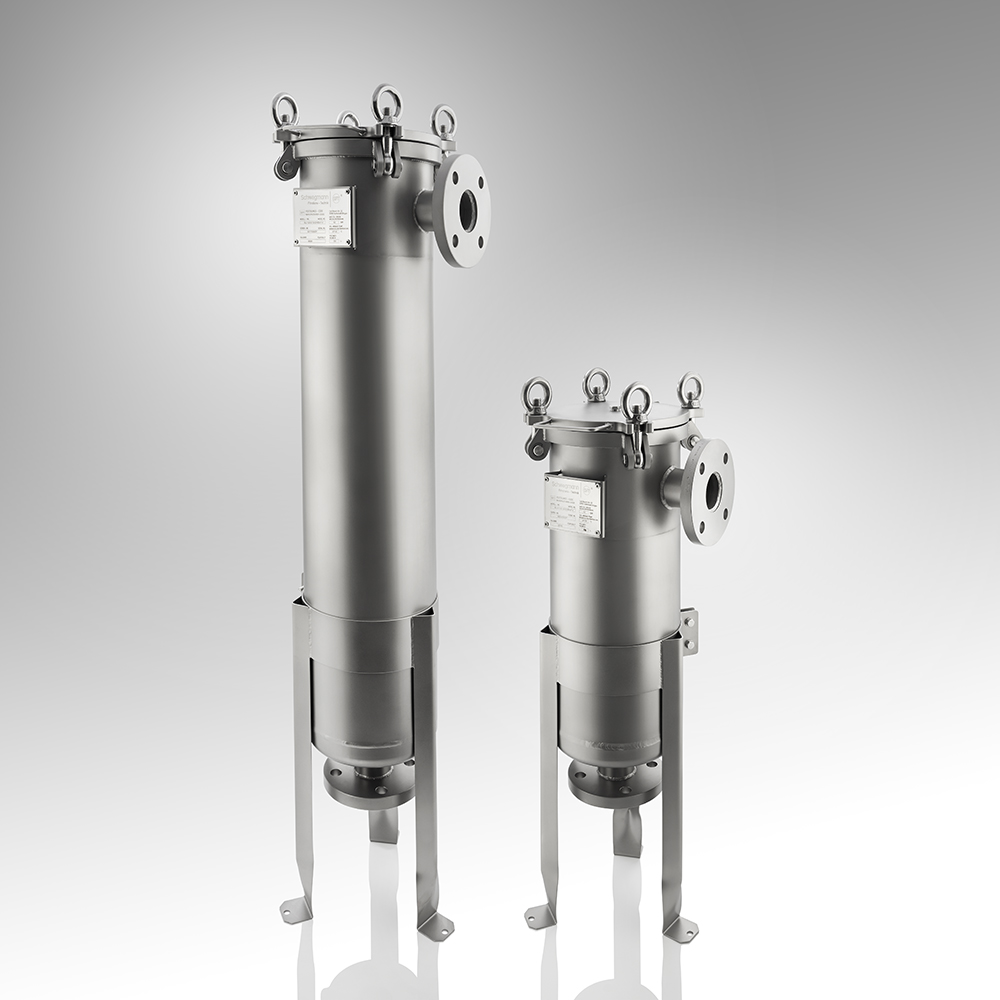

Size 10 and 20
| Code | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Device type | No. of filter bags | Size of filter bags | Material | Pressure | Connection size | Connection type | Drain | Flowtype | Surface | Gasket | Execution |
| SL | 1 | 2 | S | 10 | DN50 | F | V | 1 | A | 3 | 0 |
| SL=Side inlet | 1=1 bag | 1=Size R1 | S=Stainless steel 1.4301 | 10 = 10 bar | 1=1" | M=BSP internal thread | V=Emptying | 1=Type 1 | A=Glass bead blasted | 1=NBR | 0=Standard |
| 2=2 bags | 2=Size R2 | P=Stainless steel 1.4401 | 16=16 bar | 1,5=1,5" | N=BSP external thread | 0=without | 2=Type 2 | B=Electropolished | 2=EPDM | 1=CE PED |
|
| 10=Size R10 | PL=Stainless steel 14404 | 2=2" | F=Flange | 3=Type 3 | C=Mechanically polished | 3=FPM | 2=ATEX + CE |
||||
| 20=Size R20 | H=Hastelloy | 3=3" | TC=Tri-Clamp | 4=Type 4 | D=Electrolytically and mechanically polished | 4=PTFE | 3=Custom |
||||
| DN15 | CL=Camlock | 5=SILICONE | |||||||||
| DN20 | MR=milk pipe | 6=PTFE/FPM | |||||||||
| DN25 | |||||||||||
| DN32 | |||||||||||
| DN40 | |||||||||||
| DN50 | |||||||||||
| DN65 | |||||||||||
| DN80 | |||||||||||
| DN100 |
| Technical data | |
|---|---|
| Type | SL |
| Bag size | 1 I 2 I 10 I 20 |
| Diameter x length | 18 cm × 43 cm | 18 cm × 81 cm | 10,5 cm × 23 cm | 10,5 cm × 38 cm |
| Max. Operating data (bar): | 10 | 10 | 16 | 16 |
| Max. flow rate (m³/h): | 20 I 40 I 6 I 12 |
| Material: | Stainless steel 1.4301 or 1.4401 |
| Connections: | Size 1 and 2: DN50 or DN80 flanges (F) Size 10 and 20: 1½” sockets - DN40 (M) |
