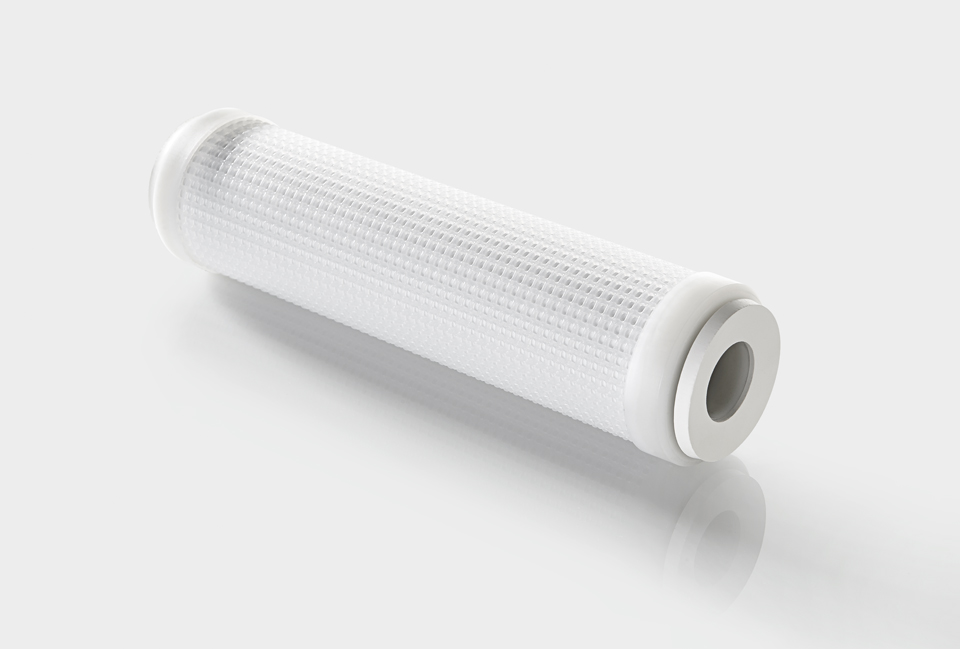

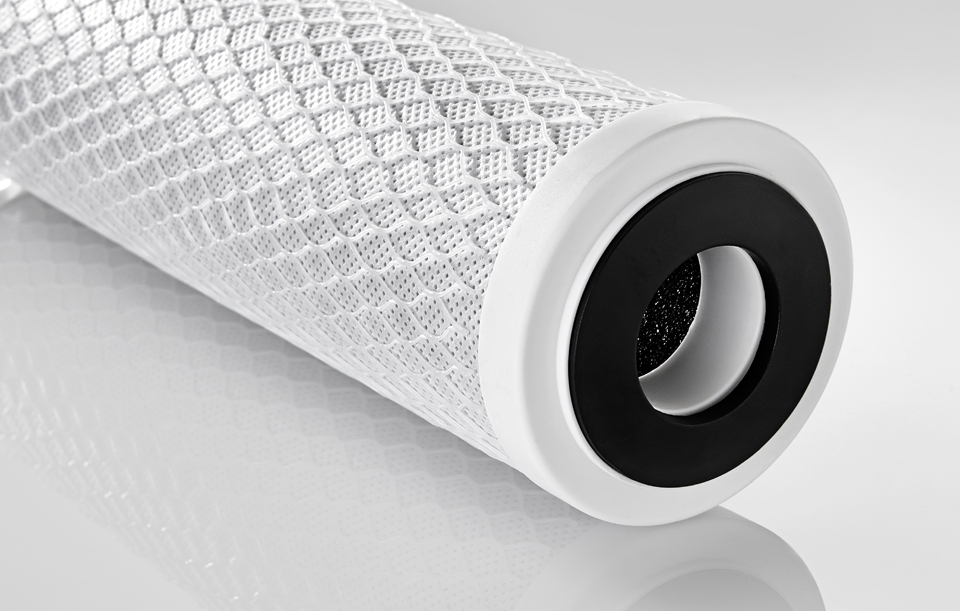

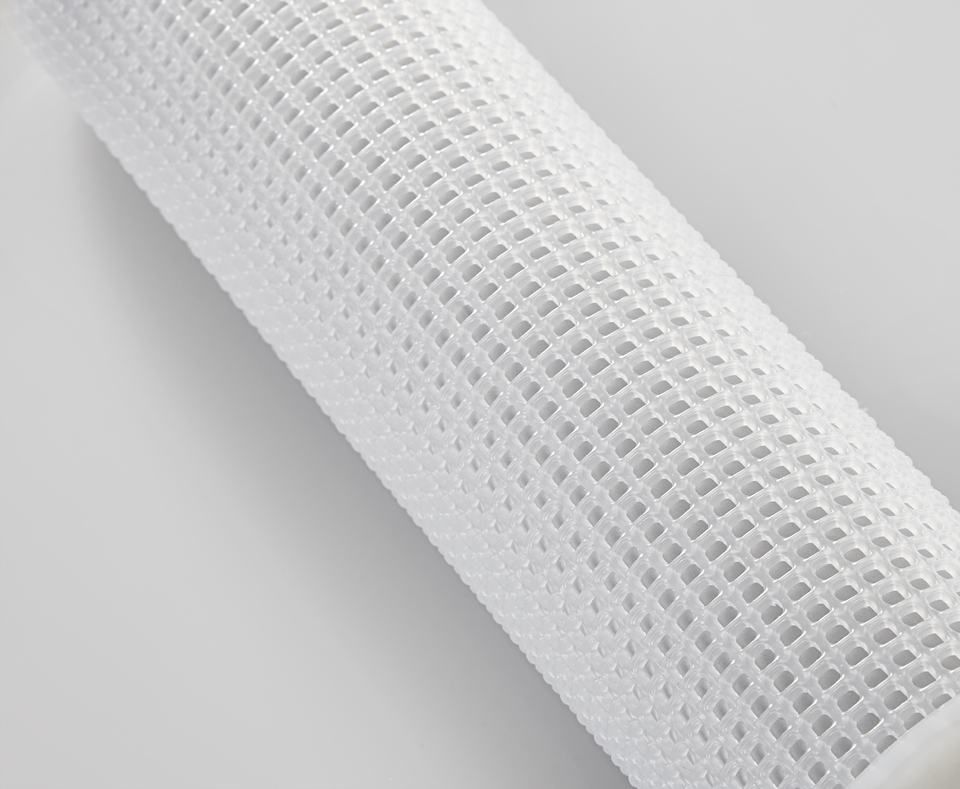

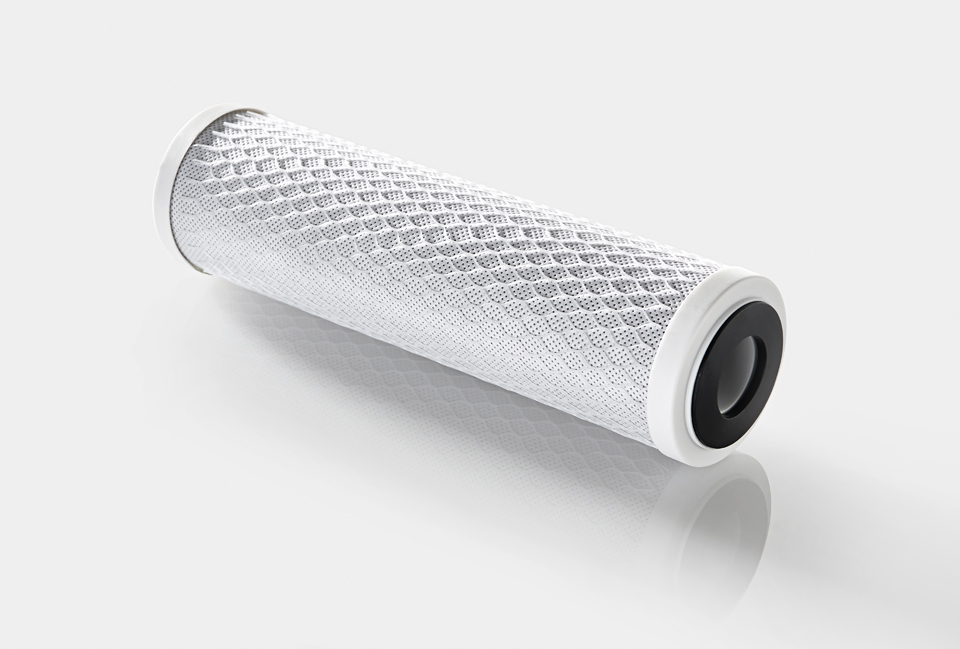

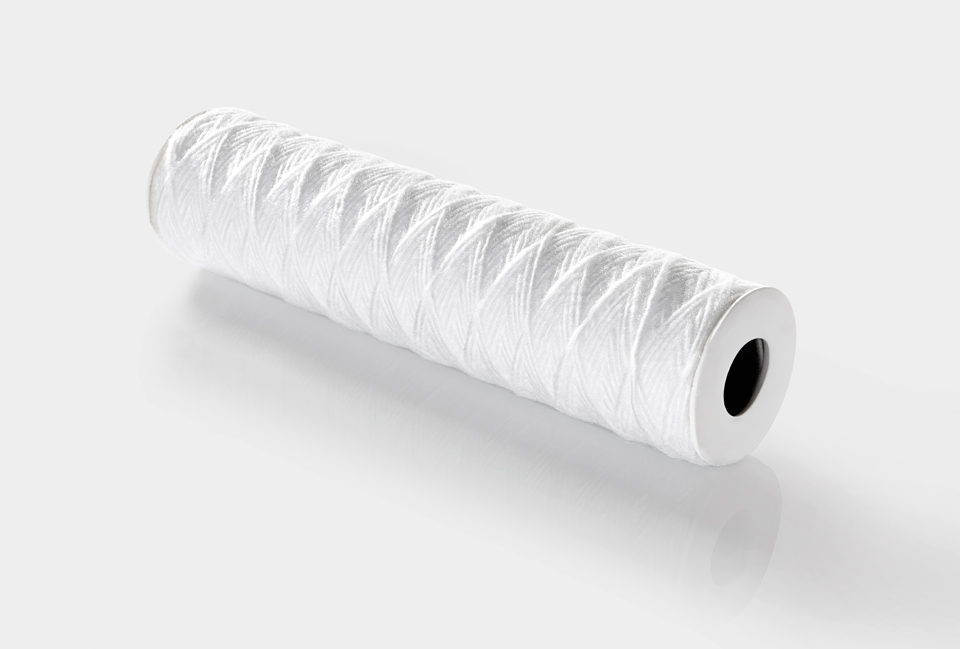

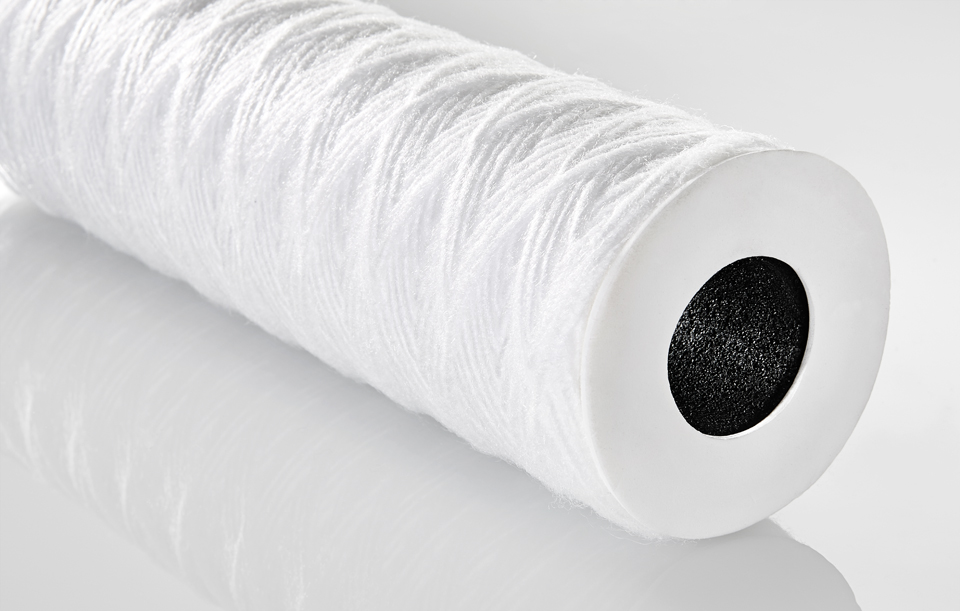

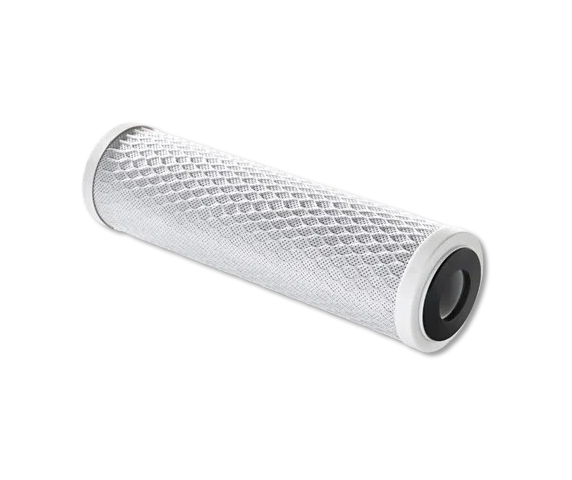

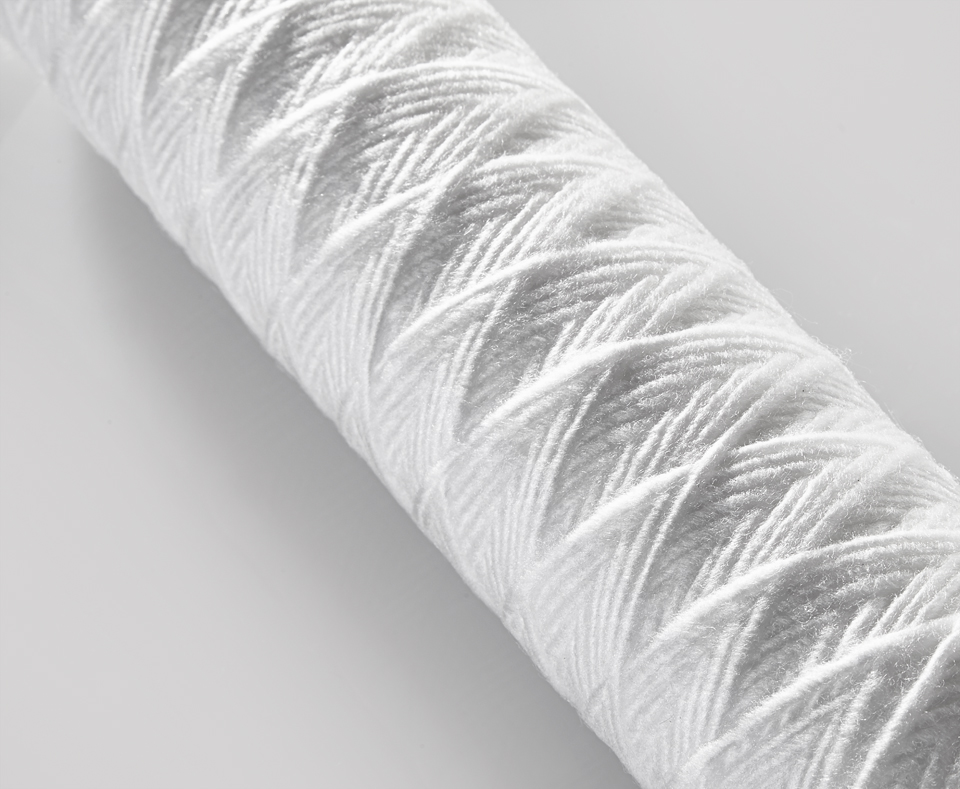

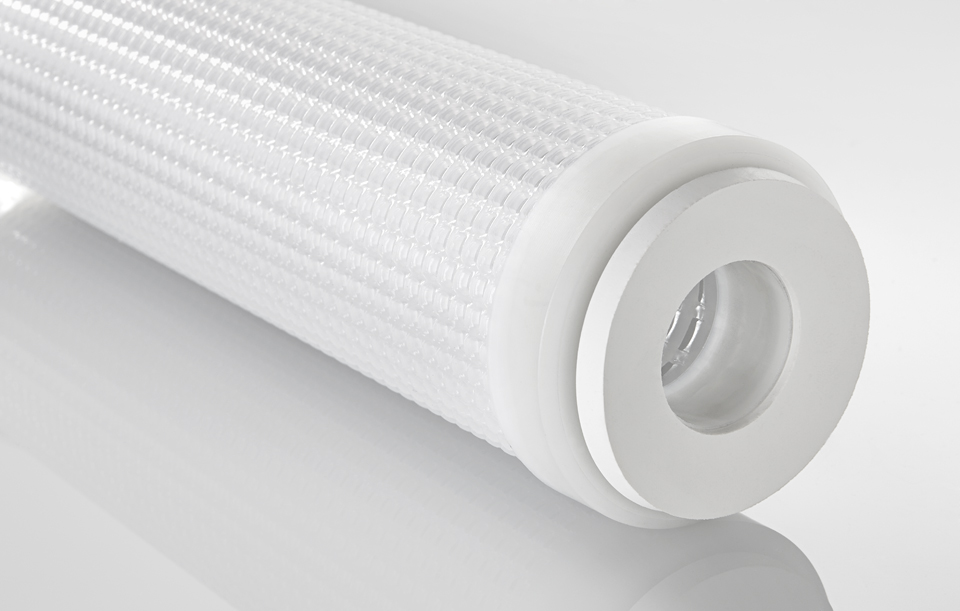

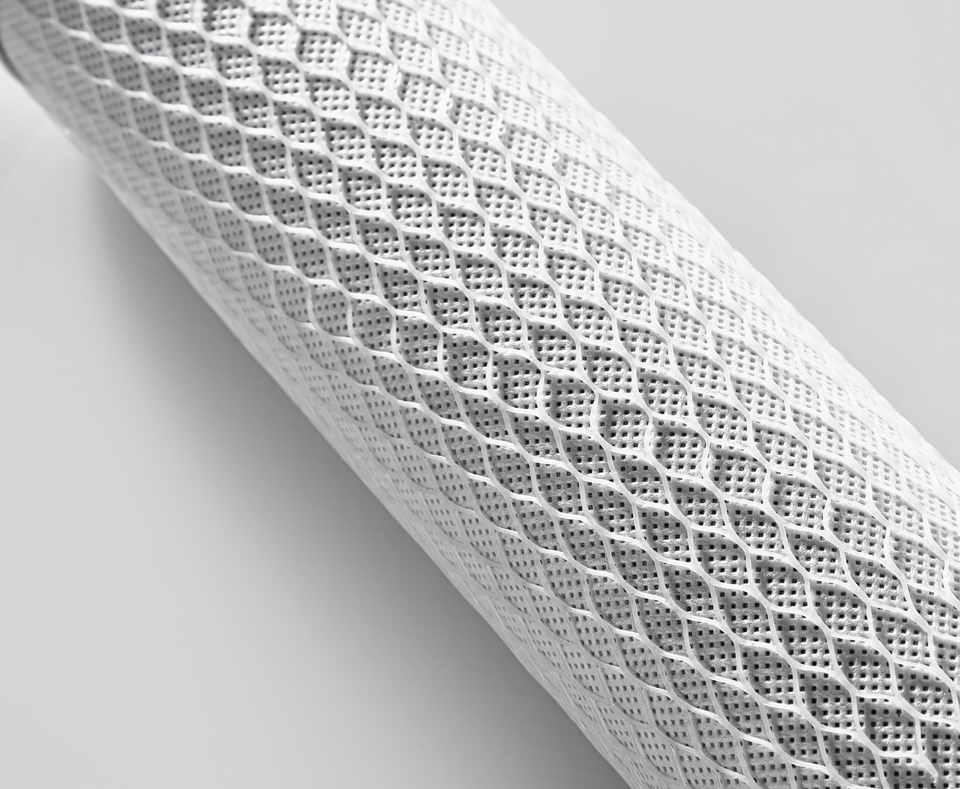

Activated carbon filter cartridges are used for small molecular substances that cannot be captured mechanically.
Applications
Water, drinking water, spirits, aqueous and organic solutions (to rectify colour impurities and odour and flavour neutralisation), dechlorination, galvanic baths (removal or organic impurities from nickel and copper baths)
Note: We always recommend rinsing active carbon filters until the fluid is visibly clean at the start.
| Coding | ||
|---|---|---|
| Candle type | Length | Fineness |
| FK-AK | 9 | 10 |
| Technical data | |
|---|---|
| Lengths | 9 ¾" | 10"" | 19 ½ | 20"" | 29 ¼" | 30" | 39" | 40" |
| Diameter | AD: 64,5 mm / ID: 27 mm |
| Material: | Activated charcoal (coal, coconut) |
| Support bodies and support cores: | Polypropylene |
| Casing pipes: | Polyethylene, sintered |
| Seals: | EPDM (flat gaskets for DOE) |
| Filter fineness (micron nominal): | approx. 10 µm |
| Max. Operating temperature: | 70°C with water |
| Recommended throughput (max.): | 300 l/h per 10” cartridge length |
