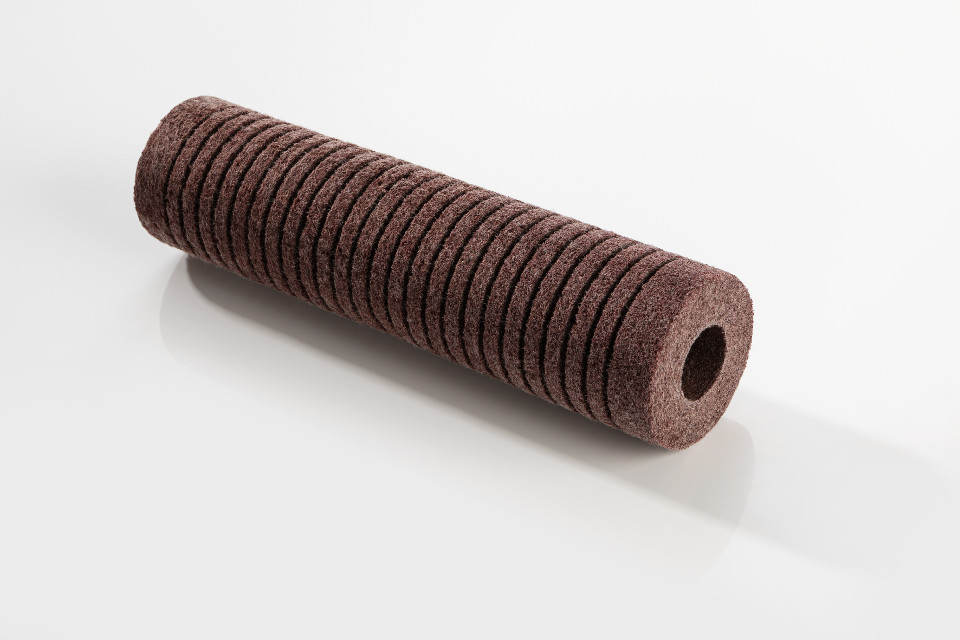

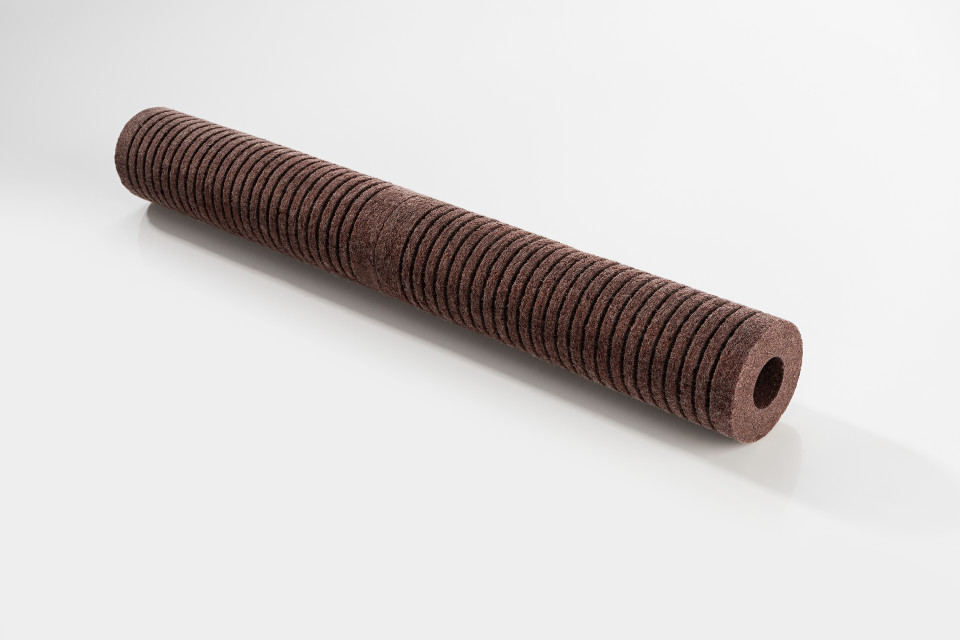

Depth filter cartridges FK-KL
The temperature-resistant depth filter cartridge from acrylic fibres successfully filters impurities and opacities from liquids
They are produced under strict quality controls and have proven themselves for example when filtering highly concentrated chemicals: Depth filter cartridges from the FK-KL series offer you excellent filtration performance, even during sophisticated processes in your company. Through an innovative procedure, long acrylic fibre connects with phenolic resin during production. If you attach importance to a reproducible, cost-effective filtration, you choose the FK-KL depth filter cartridges. Our clients form the colour, paint, adhesive and chemical industries are very satisfied with the quality and nominal deposition rates of the depth filter cartridges.
Product advantages

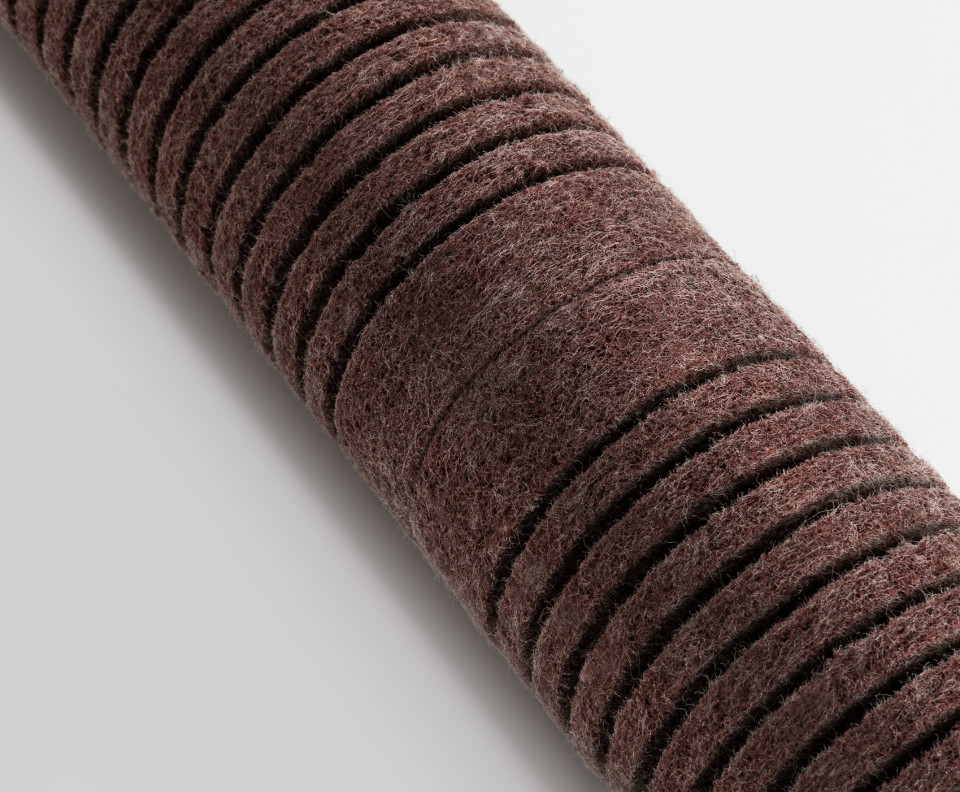

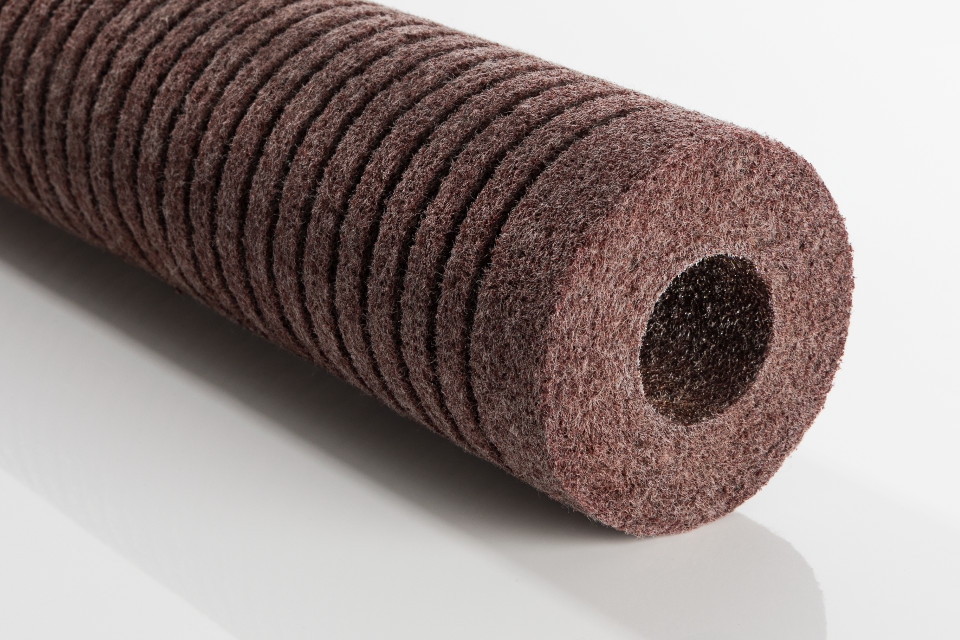

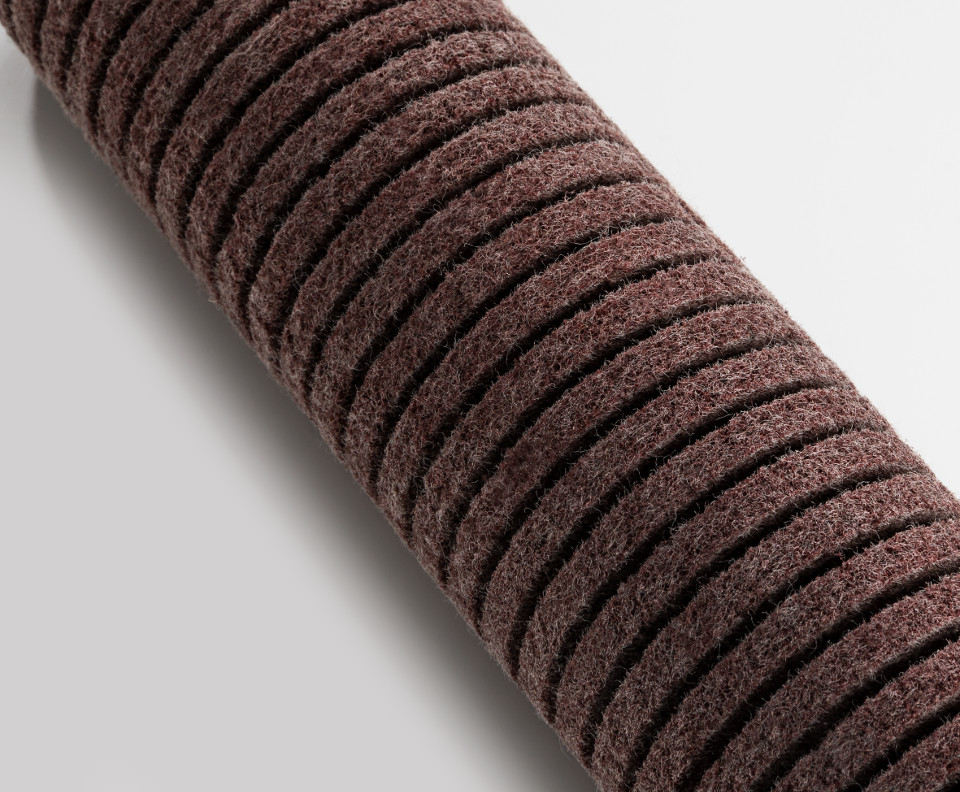

Characteristic for the depth filter cartridge is their asymmetric composition. The outer creases have a preliminary filter function. Thanks to their long phenolic resin impregnated acrylic fibres, the filter cartridges are extremely sturdy and do without a support core on the inside. Thanks to the specific manufacturing process, the filtration pores are getting smaller the closer to the core they are. This way, the external surface takes up bigger particles and only smaller suspended solids pass through the core. That increases the dirt holding capacity and dramatically extends the lifespan of the FK-KL depth filter cartridges.
You have unresolved questions about this filter category, about filter bags or other products and services by Schwegmann Filtrations-Technik? Simply send us a message via our contact form or call us. We are happy to arrange an appointment in your company and show you further options around innovative filters. We are looking forward to hearing from you!
| Codierung | ||
|---|---|---|
| Kerzentyp | Länge | Feinheit |
| FK-KL | 9 | 75 |
| Technische Daten | |
|---|---|
| Längen | 9 ¾" | 10" | 19 ½" | 20" | 29 ¼" | 30" | 39" | 40" | 50" |
| Durchmesser | AD: 64 mm | ID: 26,5 mm |
| Filterfeinheit (Mikron nominal): | 1 | 5 | 10 | 25 | 50 | 75 | 100 | 125 | 150 |
| Druckfestigkeit: | 9 bar bei 20°C 8,6 bar bei 38°C 6,2 bar bei 65°C 4,5 bar bei 82°C 1,7 bar bei 121°C |
| Max. Differenzdruck: | 2,5 bar |
| Max. Betriebstemperatur: | 121 °C |
| Empf. Durchsatz (max.): | 38 l/min je 9 ¾" Kerzenlänge |
