Bag filter ML

Multi Bag Filter Housing Made of Stainless Steel – More Profitability and Safety for Filtration

The multiple bag filter housing from Schwegmann Filtrations-Technik is an excellent choice for extremely demanding filtration processes. It is available in different versions. Depending on the size, there is space for four, six, eight or twelve individual filter bags in the bag filter housing. This enables maximum flow rates of 100 to 300 m³/h.

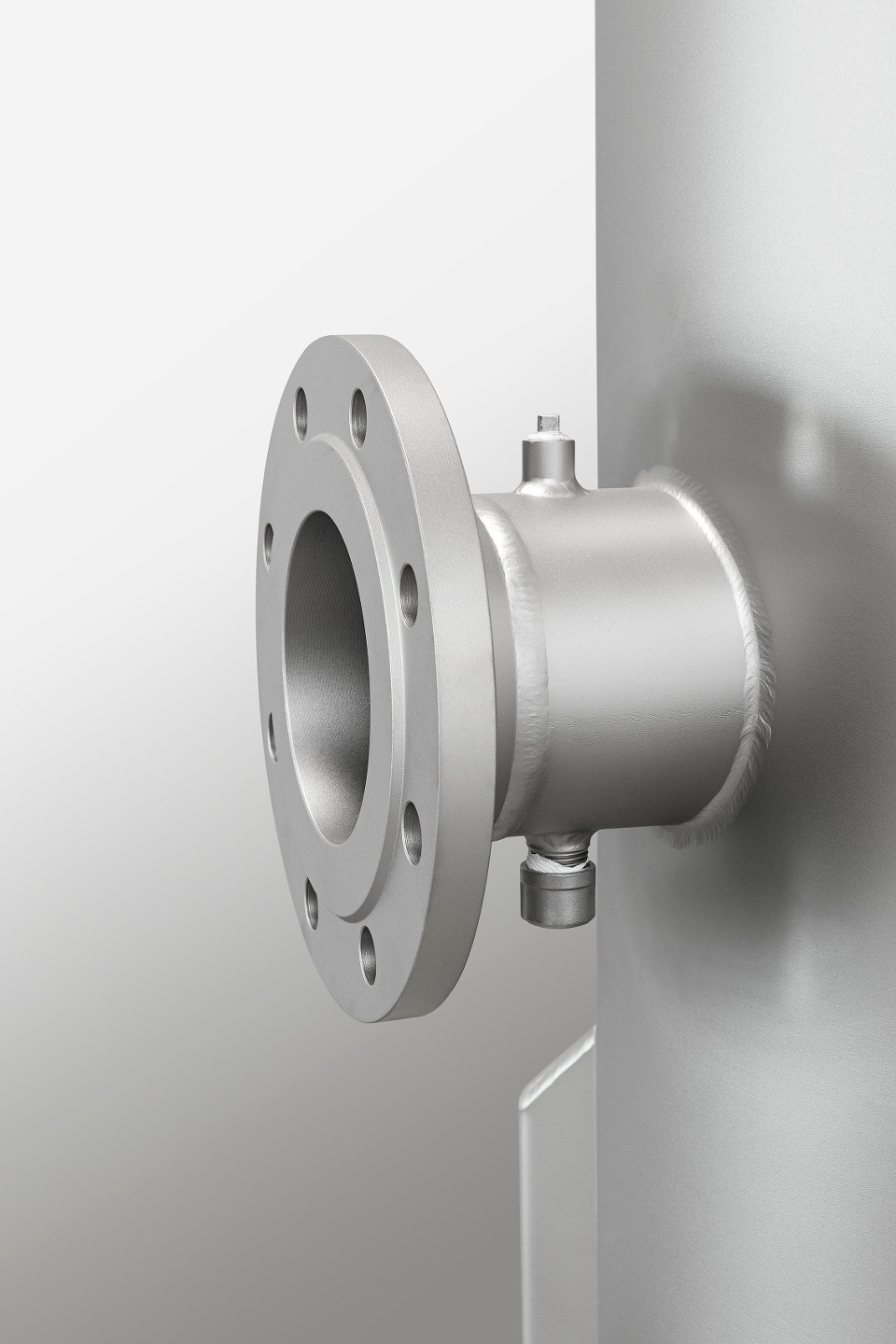

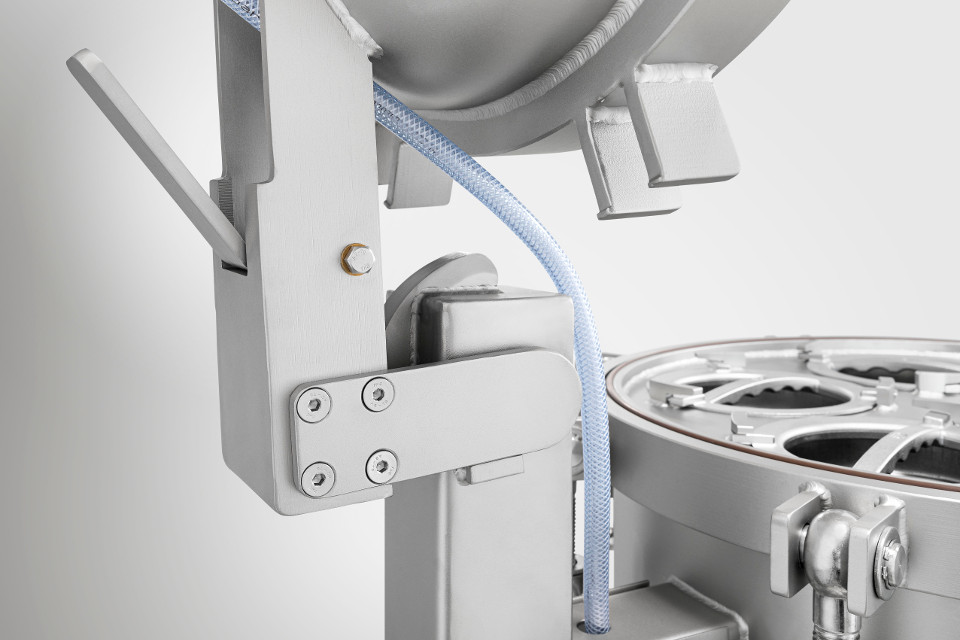

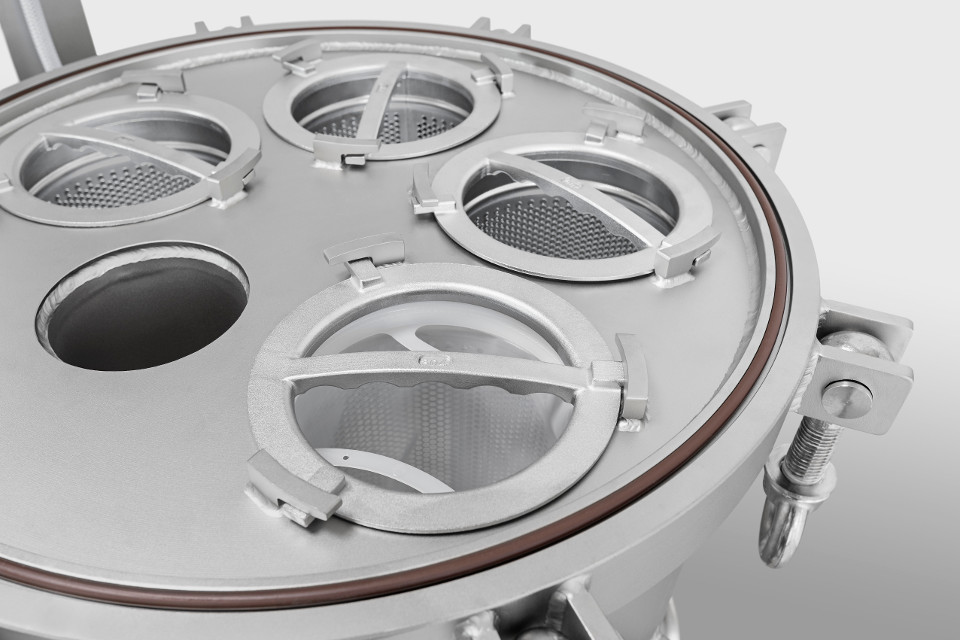

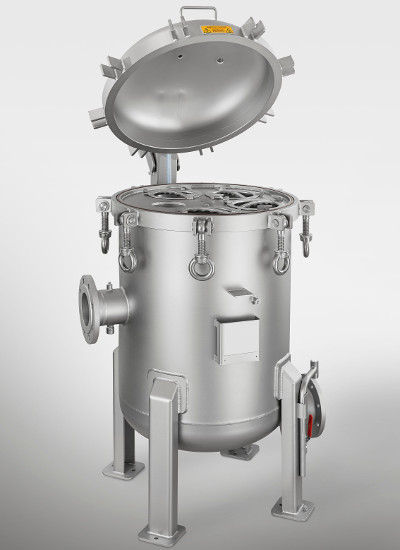

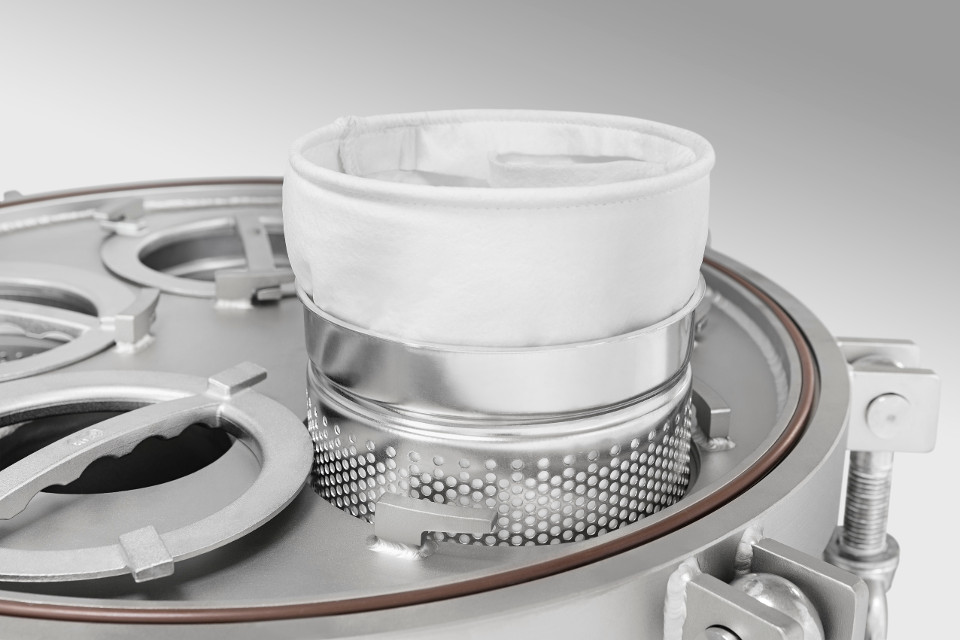

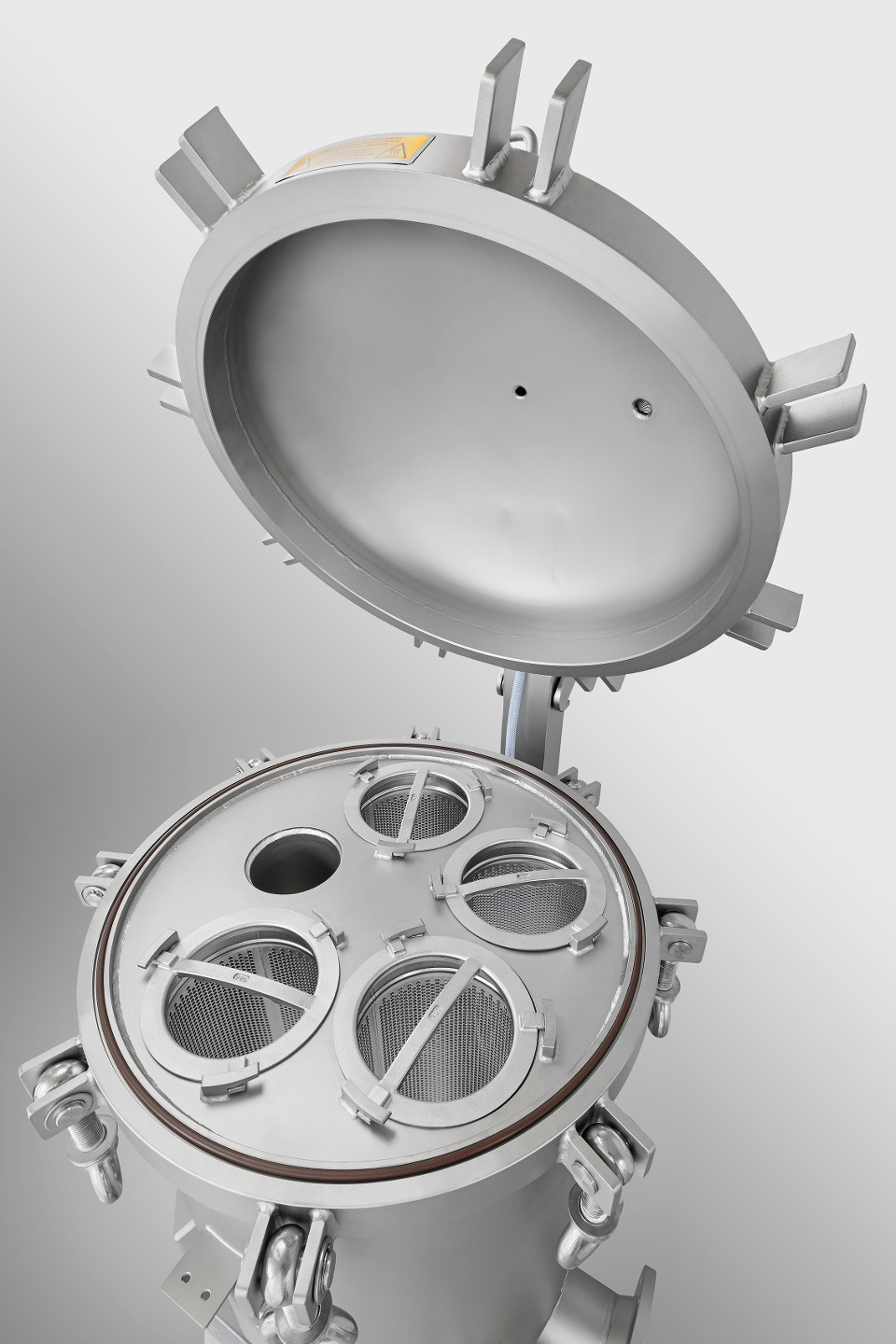

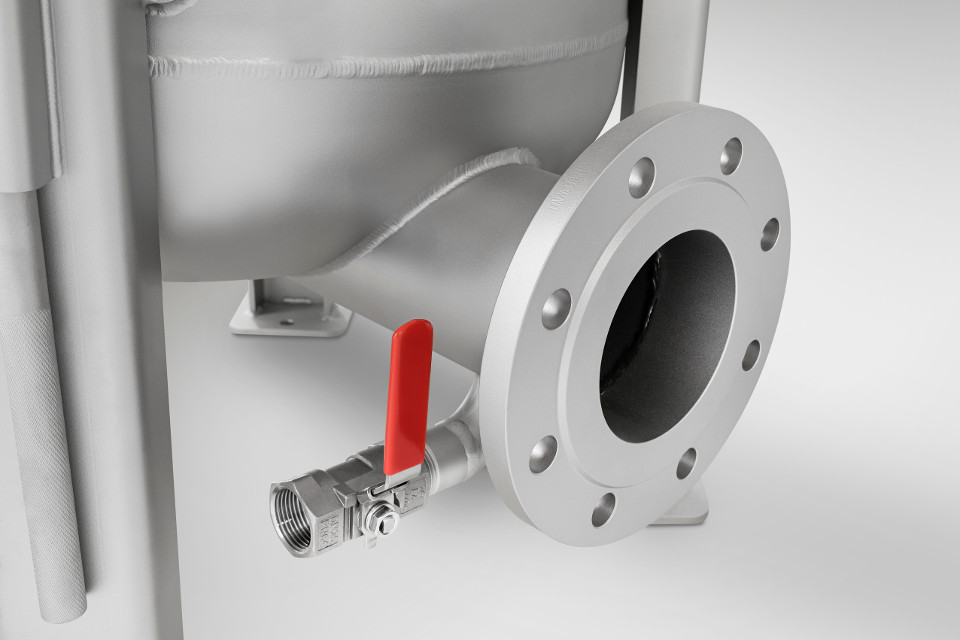

The bag filter housing is a stainless steel pressure vessel that can hold four, six, eight or twelve ring filter bags. The filter housing consists of a vertical, cylindrical container shell with a hinged lid. The stainless steel lid is securely closed using hinged eyebolts and ring nuts. It is easy to operate thanks to the spring-loaded swivel mechanism. Liquids enter the housing via the side inlet to the filter bags and emerge filtered at the bottom of the housing. We are also happy to supply the multiple bag filter housing to your company with a quick-release fastener.

Product advantages

  • Filter surface increases
  • Significantly longer downtimes in production possible
  • Achievement of higher flow rates
  • Optimisation of product safety and quality
  • Lower setup costs due to less interruptions for the exchange of bag filters
  • Ideal for batch processes with high pollutant loads
  • User-friendly and cost-effective alternative in complex filter processes
  • versatile applications in your company thanks to the low height the housing

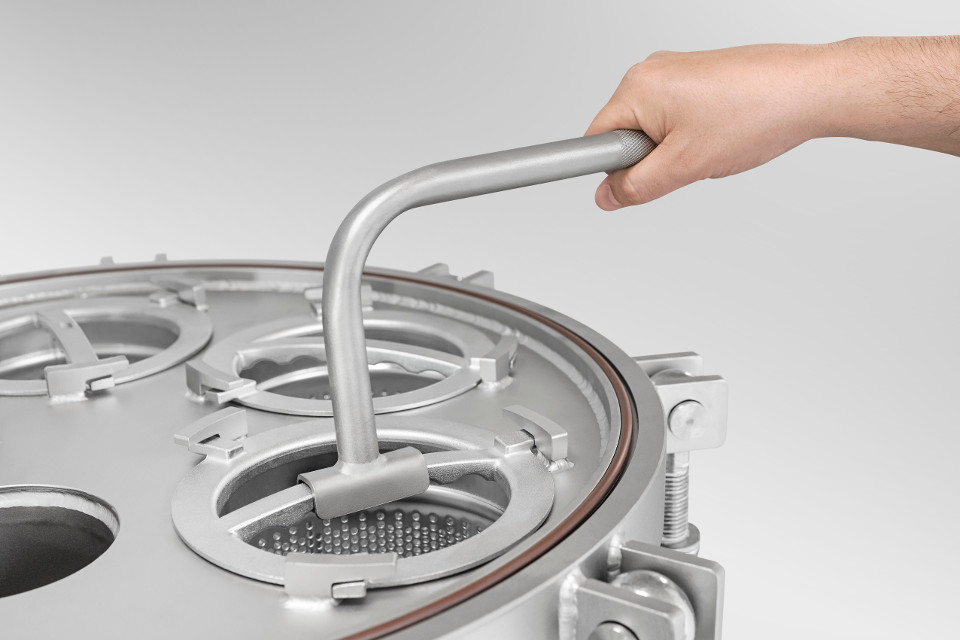

  • quick and comfortable exchange of the filter bags
  • the setup of ladders or runways for filter changes is completely omitted
  • the lateral inlet and outlet on the housing allows for quick and complete emptying

No volume flow is too high for us. The Schwegmann multiple bag filter housing is also available in accordance with ATEX 2014/34/EU. We find the right filter solution for every budget and every requirement.

Do you still have questions about our bag filter housing, another filter series or efficient filtration in general? Simply send us a message directly using our online form.
Our friendly service team looks forward to hearing from you!

Coding
Device typeNumber of bagsSizeMaterialPressureConnectionConnection type
ML42S10DN100F
Technical data
TypeML
Number of filter bags:4 I 6 I 8 I 12
Bag size2 I 2 I 2 I 2
Max. Operating conditions (bar I °C):10 | 80
Max. flow rate (m³/h):100 I 150 I 200 I 300
Material:Stainless steel 1.4301
Connections:DN100 I DN150 I DN200 I DN250
Housing capacity (liters):222 I 280 I 650 I 765
