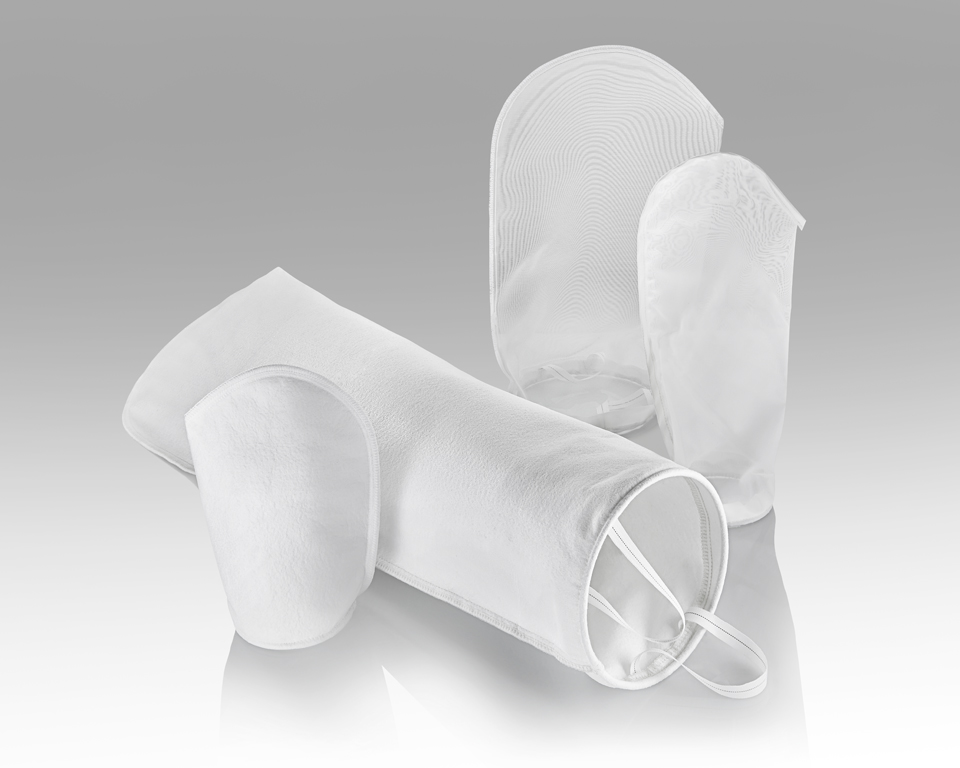

WeBaX filter bag with metal ring

Our ring filter bags are made for use with closed bag filter housings and are compatible with all commonly available bag filters.

Filter bags from Schwegmann Filtrations-Technik are a safe Made in Germany product of proven quality: Whether in the production of paints and varnishes, printing inks, chemicals or solvents, our ring filter bags are used in a wide range of applications in the German industrial sector. They are used wherever open filtration with filter bags no longer works, because higher throughputs, higher pressures, higher temperatures or more aggressive media are used, or where the focus is simply on employee safety.

Unsere Filterbeutel sind mit einem verzinkten Ring aus Stahl oder Edelstahl im Beutelkragen versehen und ermöglichen so ein leichtes Einsetzen. Beutelfilter in der Größe R1/R2 sind standardmäßig mit zwei Schlaufen versehen, welche die Handhabung zusätzlich erleichtern. Neben den Standardabmessungen ist es uns auch möglich, kleinere Stückzahlen nach individuellen Maßangaben herzustellen. Wir können sämtliche Durchmesser und Längen konfektionieren. Die WeBaX® Filterbeutel von Schwegmann Filtrations-Technik gibt es in sechs verschiedenen Materialien sowie in 23 verschiedenen Maschenweiten, sodass für jede Anwendung der passende Filterbeutel dabei ist. You can choose from the following materials: Selection of screen fabrics:

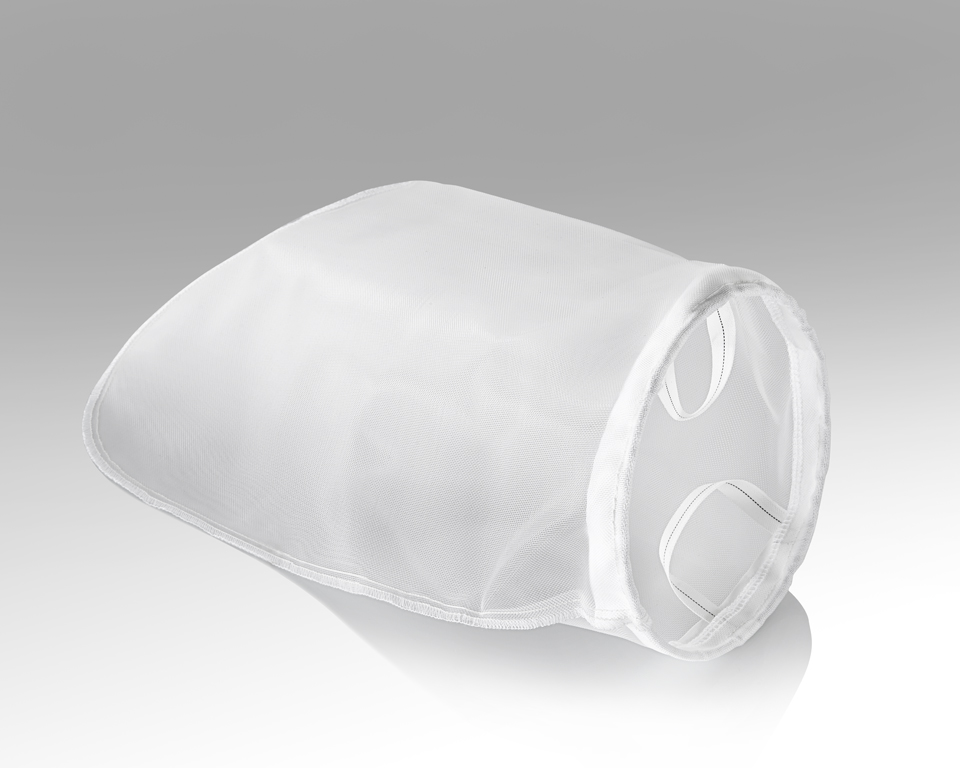

Polyamide mesh (nylon)
Polyester mesh
Polyproylene mesh
Polyamide carbon mesh
PTFE / ETFE screen mesh

Selection of needle felts:

Polyester needle felt
Polypropylene needle felt
Polyamide needle felt (nylon)
Nomex® needle felt

Product advantages

Filter bag with metal ring in the bag collar - also available in stainless steel on request

The ring filter bags have a galvanized steel ring in the bag collar, which guarantees an absolutely secure fit in the bag filter housing.
On request, the filter bags can also be modified and fitted with a stainless steel ring instead.
If steel is not permitted in your filter process, we can alternatively manufacture the rings in plastic, e.g. polypropylene.

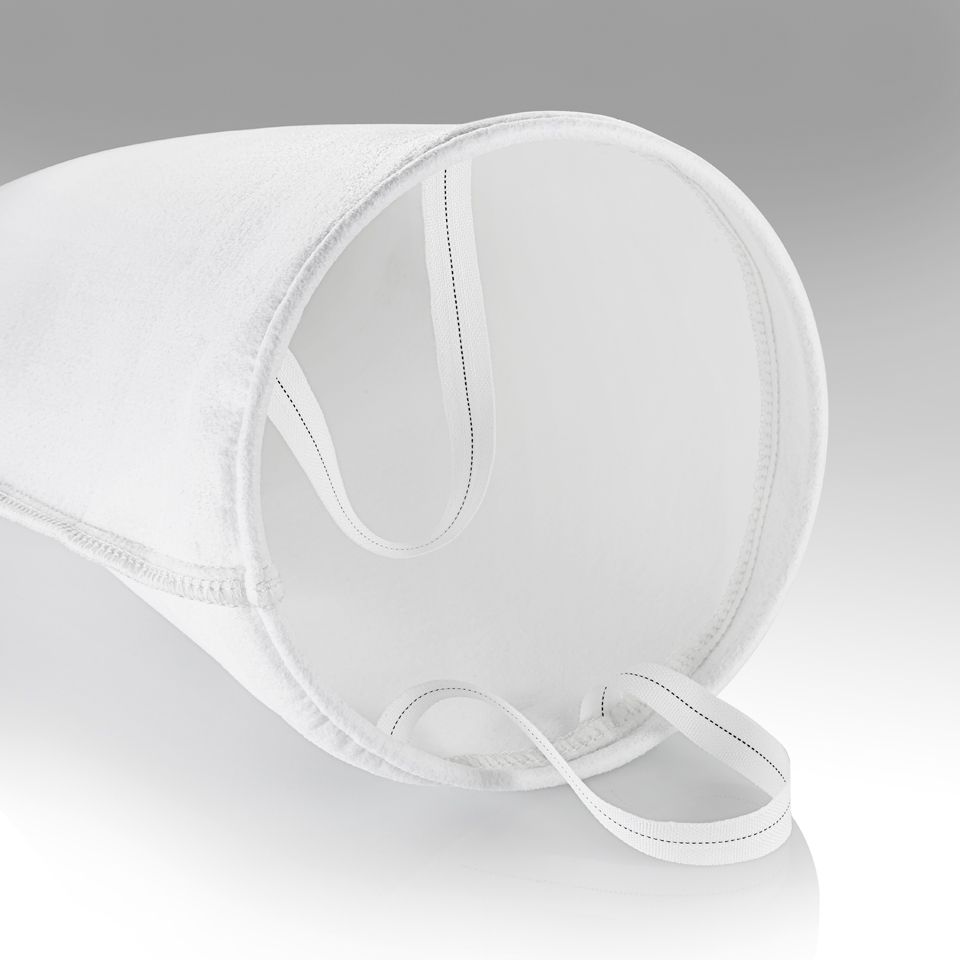

Easy insertion and removal of the filter bags thanks to integrated tabs

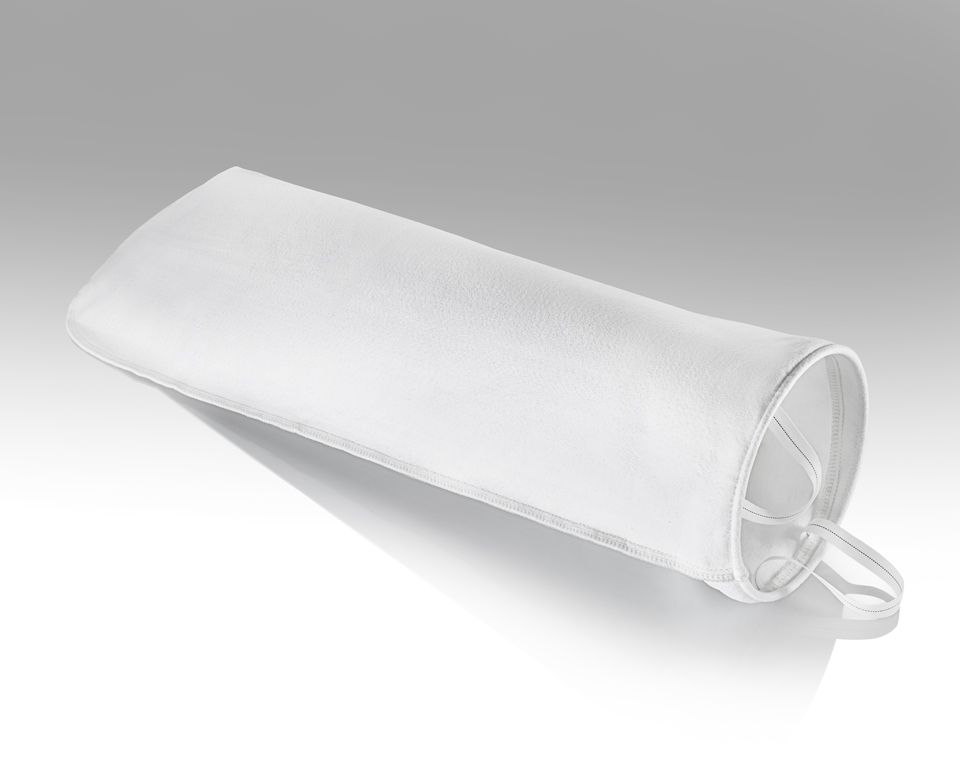

Filter bag made of needle felt - reliable filtration

Perfect fit for all commercially available bag filters

Our filter bags are suitable for all closed bag filter housings and can be used for all standard bag filters on the market.
We have been offering our customers proven quality products for filtration since the 1960s.
We are also happy to advise you on a suitable housing for your filter bags, on other filtration options for your system and provide advice on further optimization options.
We look forward to receiving your inquiry via our website!

Send request

Codierung
Filtermedium	Maschenweite	Größe	Kragen
PA	100	R1	M

Größen in cm
	R1	R2	R10	R20
	18	18	10,5	10,5
L	43	81	23	38

Größen in cm
	R1S	R10S	RS
	18	18
L	Sonderlänge		Sonderanfertigung nach Ihren Maßangaben

Filtermedium	Code	Filtereinheit / Maschenweite in Mikron
		1	5	10	15	25	30	50	56	70	80	100	125	150	180	200	250	300	400	500	600	800	1.000	1.320
Polyamid monofil	PA	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
Polyamid Nadelfilz	NY		•	•		•		•				•
Polyester monofil	PES	•	•	•	•			•			•	•		•		•	•	•	•		•	•
Polyester Nadelfilz	PE	•	•	•		•		•		•		•		•		•
Polypropylen monofil	PS											•		•		•	•	•	•	•	•	•
Polypropylen Nadelfilz	P	•	•	•		•		•		•		•				•
