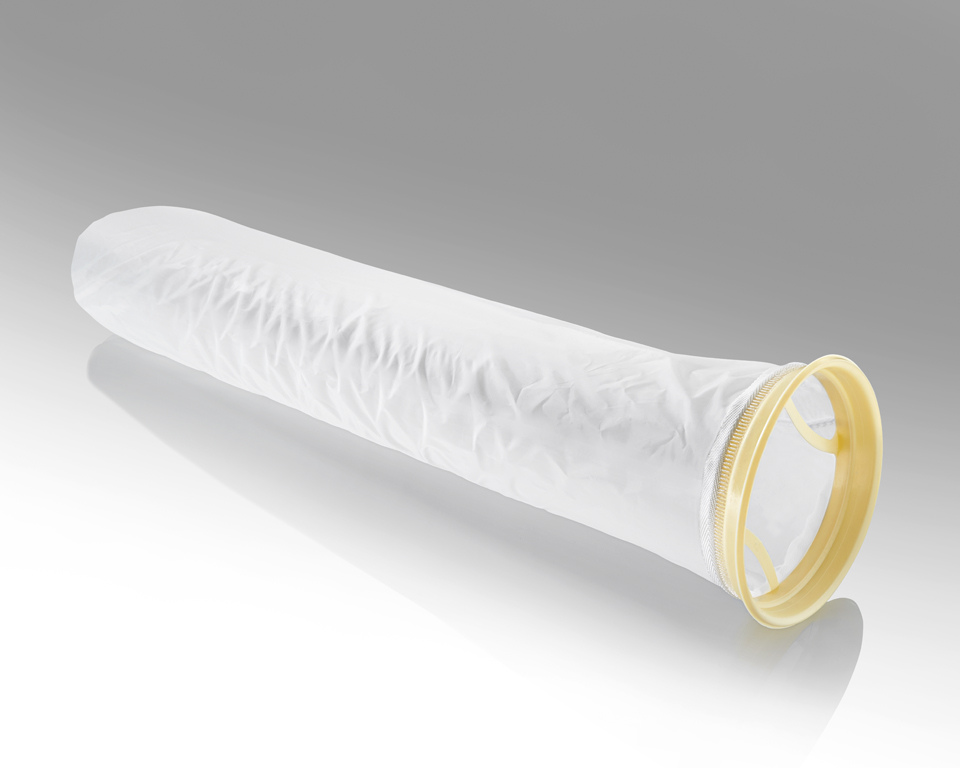

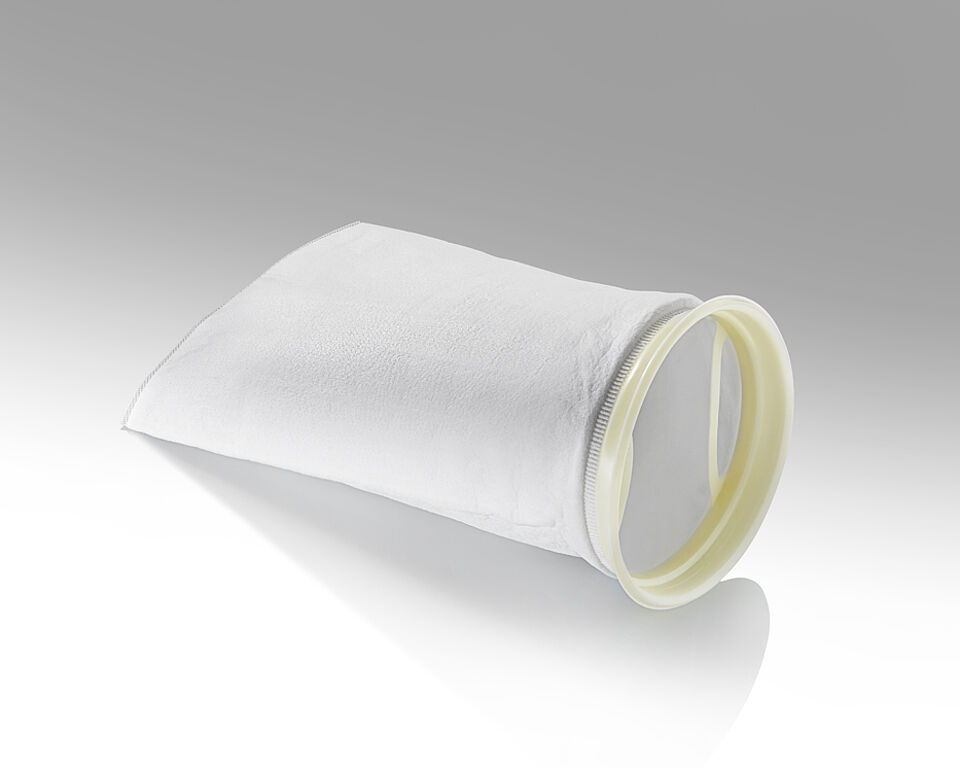

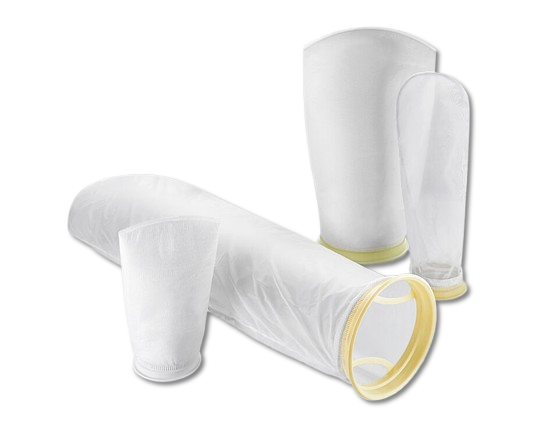

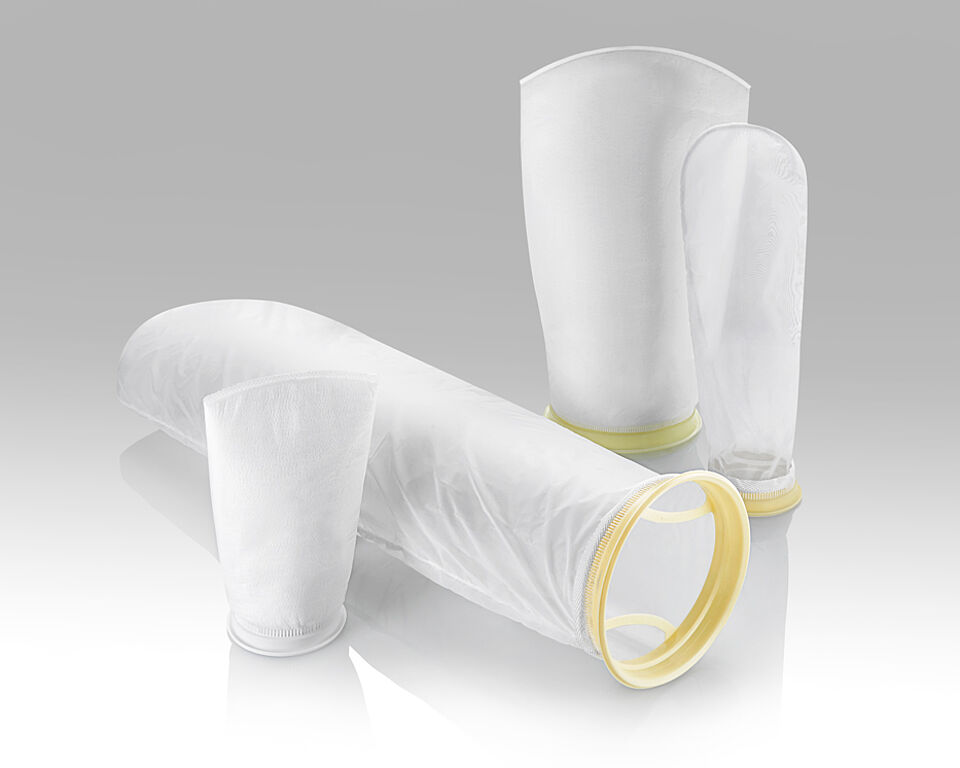

WeBaX filter bag with plastic collar
Our ring filter bags with flexible plastic collar offer a perfect fit

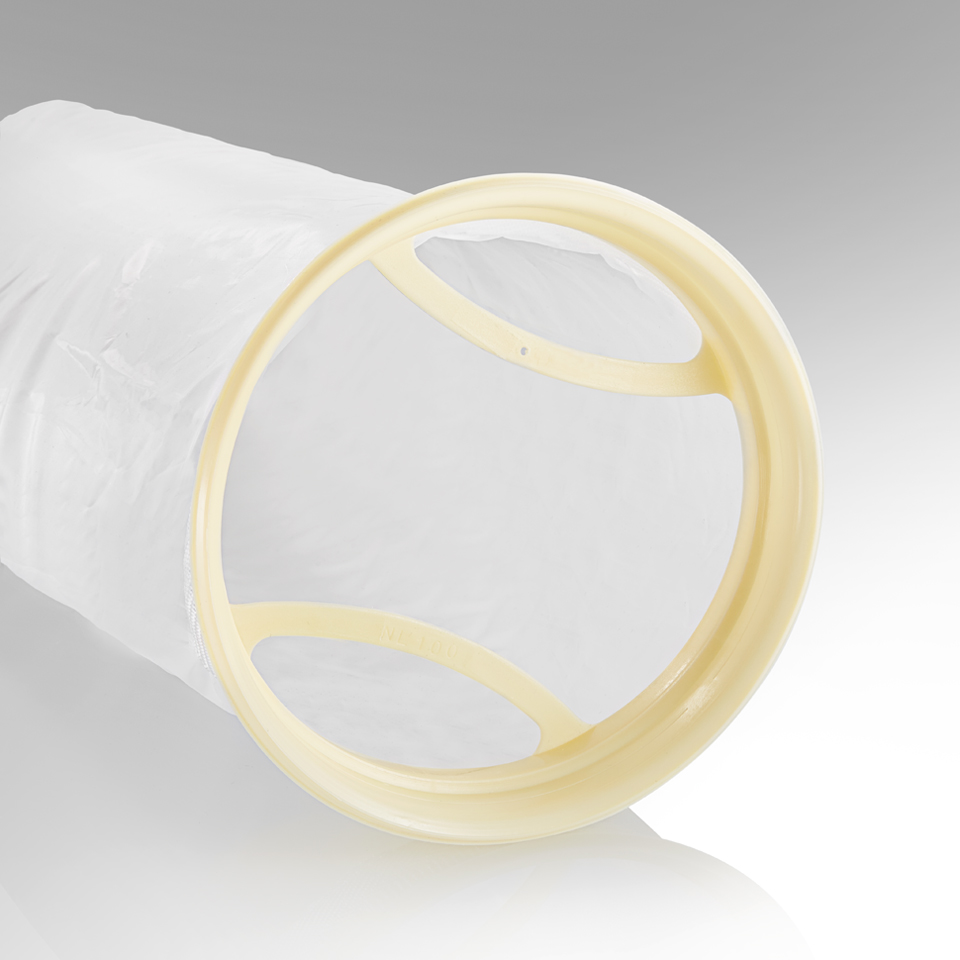

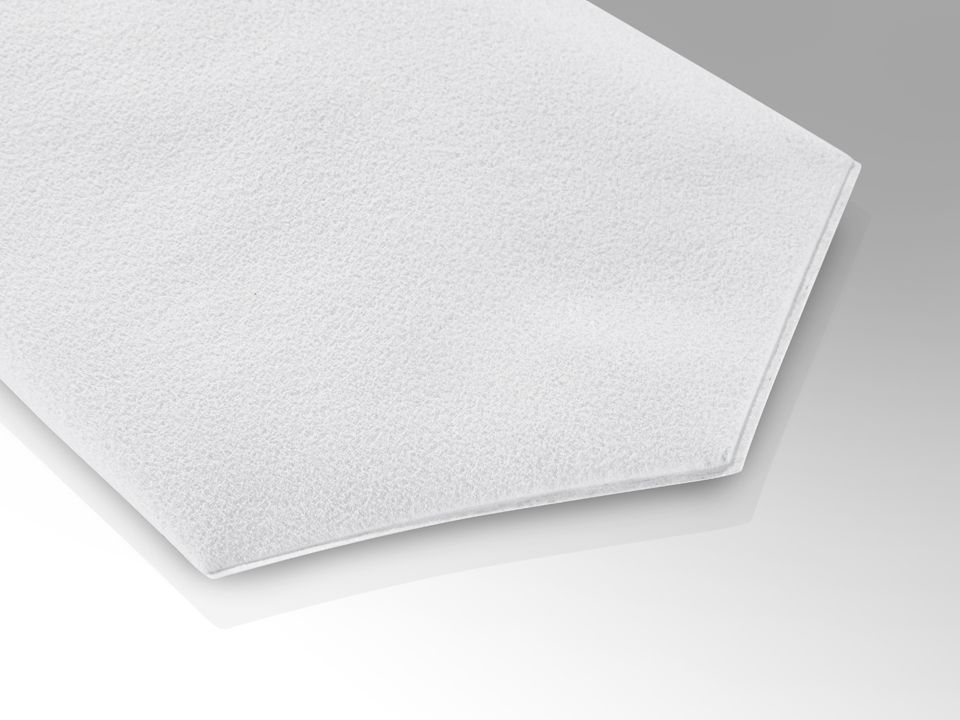

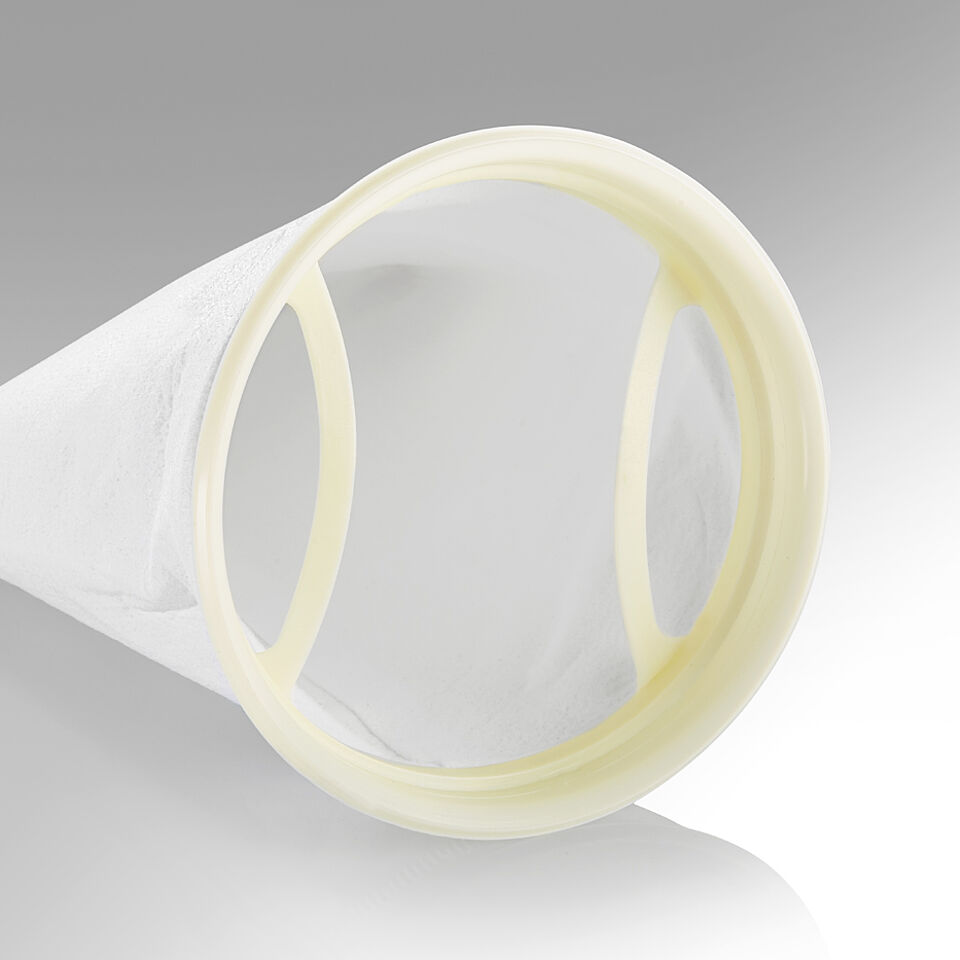

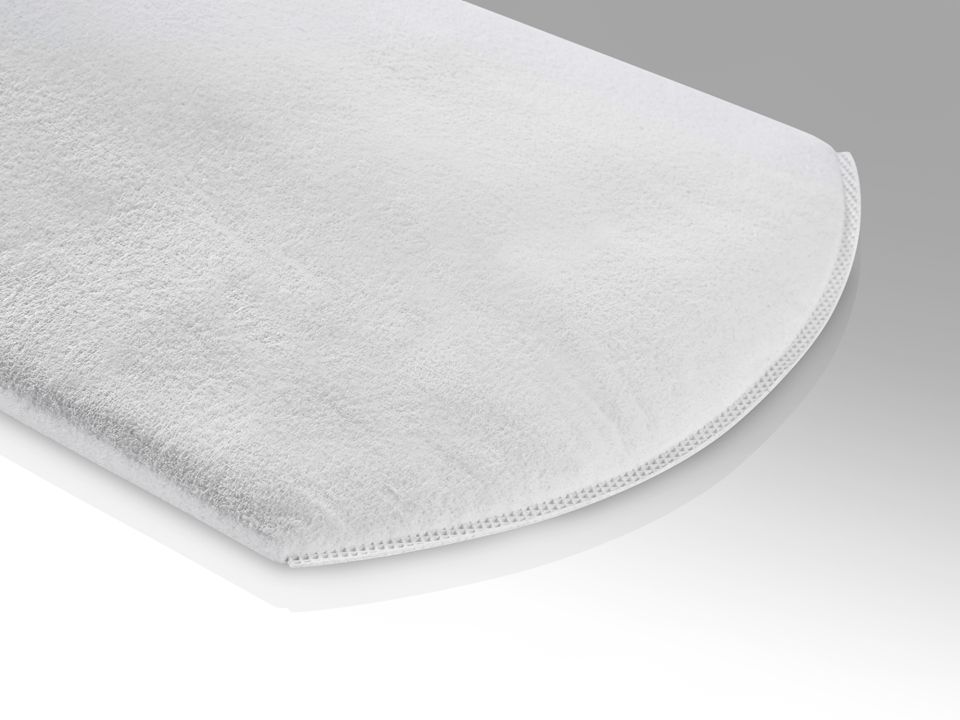

In the filter housing, the plastic collar adapts flexibly to the filter housing and thus functions as a reliable, chemically resistant seal. The two needle felt types also feature welded seams to prevent bypass at these vulnerable points. The bags are made from low-silicone materials and come with two integrated loops for easy removal.
PRODUCT ADVANTAGES
- Filter bag with flexible plastic collar in many sizes - suitable for all commercially available bag filter housings
- With the Extended Life filter bag, you get more from the bag (type 4)
- Easy insertion and removal of the filter bags thanks to integrated tabs
- Filter bags made of needle felt - reliable filtering for single use
- Fully welded filter bags guarantee bypass-free filtration
- High-quality filter bags made to measure
| Codierung | |||
|---|---|---|---|
| Filtermedium | Feinheit | Größe | Kragen |
| P | 100 | R1 | K |
| Größen in cm | |||||
|---|---|---|---|---|---|
| R1 | R2 | R5 | R10 | R20 | |
 | 18 | 18 | 15,2 | 10,5 | 10,5 |
| 43 | 81 | 50,8 | 23 | 38 |
| Filtermedium | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0,5 | 1 | 3 | 5 | 10 | 25 | 50 | 75 | 80 | 100 | 125 | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1.000 | 1.250 | ||
| Polyester Nadelfilz | PE | ||||||||||||||||||||
| Polypropylen Nadelfilz | P | ||||||||||||||||||||
| Polyamid monofil (genäht) | PA |
